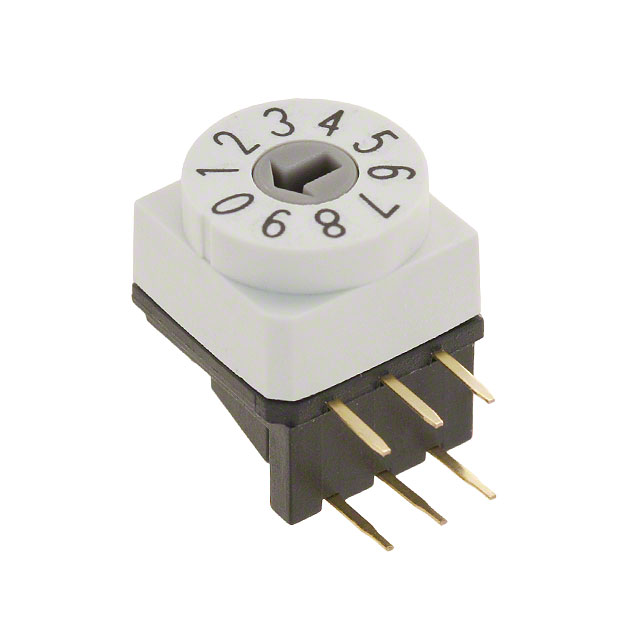

RDTAR10R1T
ActiveE-Switch
SWITCH ROTARY DIP BCD 0.15A 42V
Deep-Dive with AI
Search across all available documentation for this part.
RDTAR10R1T
ActiveE-Switch
SWITCH ROTARY DIP BCD 0.15A 42V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDTAR10R1T |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | BCD |
| Contact Finish | Gold |
| Electrical Life | 10000 Cycles |
| Features | IP67 - Dust Tight, Waterproof |
| Height Above Board [z] | 10 mm |
| Height Above Board [z] | 0.394 in |
| Length | 10 mm |
| Length | 0.394 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 42 VDC |
| Washable | True |
RDTAR10 Series
| Part | Actuator Type | Height Above Board | Height Above Board | Washable | Length | Length | Contact Finish | Mounting Type | Voltage Rating | Features | Mechanical Life | Number of Positions | Termination Style | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch | Pitch [x] | Actuator Level | Circuit | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | Rotary for Tool | 6.7 mm | 0.264 " | 10 mm | 0.394 in | Gold | Surface Mount | 42 VDC | IP67 - Dust Tight Waterproof | 10000 Steps | 10 | Gull Wing | 10000 Cycles | 125 °C | -60 °C | 0.1 in | Full | 2.54 mm | Flush Recessed | BCD | |||
E-Switch | Rotary for Tool | 10 mm | 0.394 in | Gold | Through Hole Right Angle | 42 VDC | IP67 - Dust Tight Waterproof | 10000 Steps | 10 | PC Pin | 10000 Cycles | 85 °C | -40 °C | 0.1 in | Full | 2.54 mm | Flush Recessed | BCD | 10 mm | 0.394 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 2.28 | |
Description
General part information
RDTAR10 Series
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 150mA 42VDC
Documents
Technical documentation and resources
No documents available
