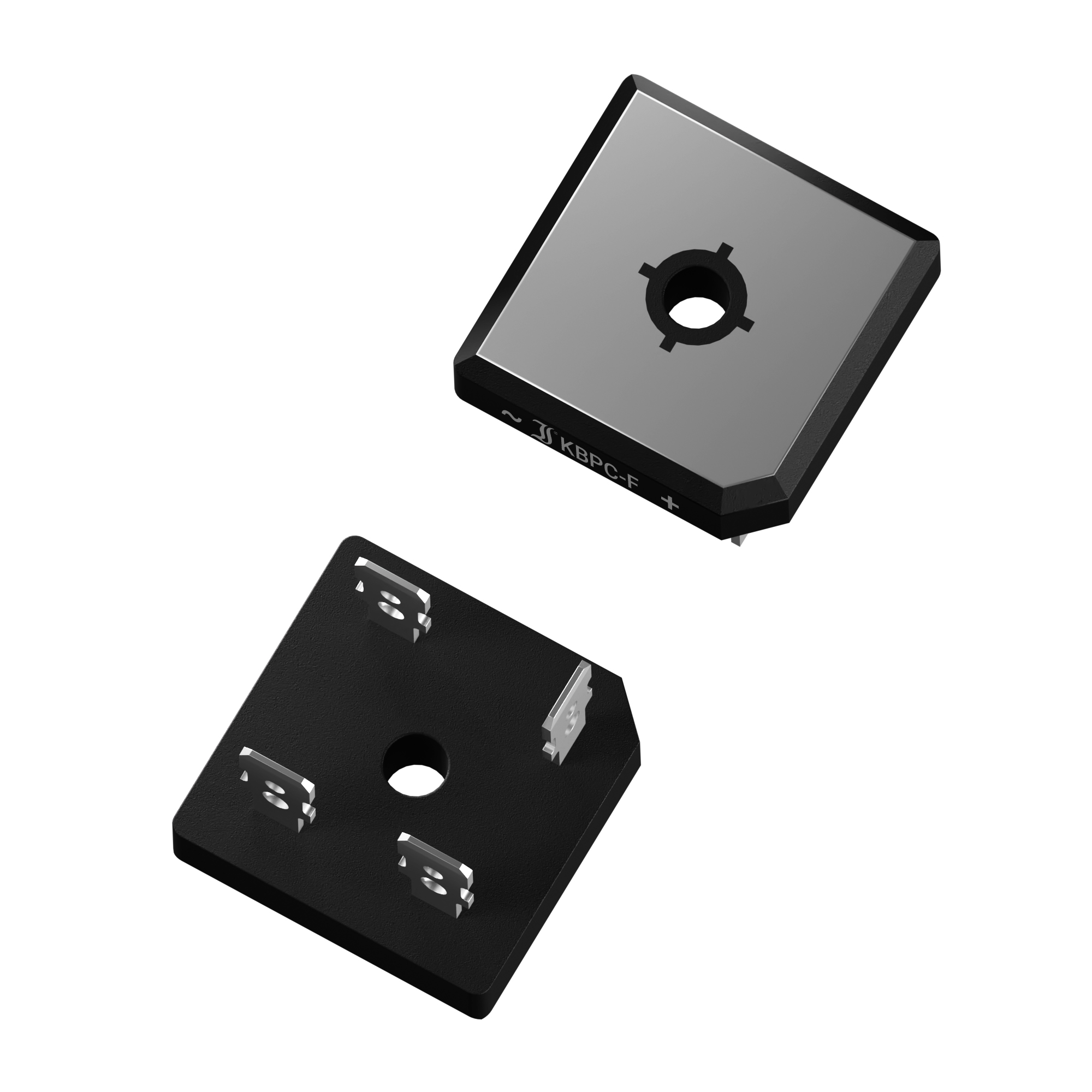

KBPC5012FP
ActiveDiotec Semiconductor
BRIDGE 1PH KBPC 1200V 50A 150DEG
Deep-Dive with AI
Search across all available documentation for this part.
KBPC5012FP
ActiveDiotec Semiconductor
BRIDGE 1PH KBPC 1200V 50A 150DEG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KBPC5012FP |
|---|---|
| Current - Average Rectified (Io) | 50 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Diode Type | Single Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | KBPC35, 4-Square |
| Supplier Device Package | KBPC35 |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.02 | |
| 10 | $ 3.61 | |||
| 25 | $ 3.41 | |||
| 240 | $ 2.81 | |||
| 480 | $ 2.52 | |||
| 1200 | $ 2.12 | |||
| 2640 | $ 2.02 | |||
| 5040 | $ 1.94 | |||
Description
General part information
KBPC5012 Series
Bridge Rectifier Single Phase Standard 1.2 kV Chassis Mount KBPC35
Documents
Technical documentation and resources
No documents available
