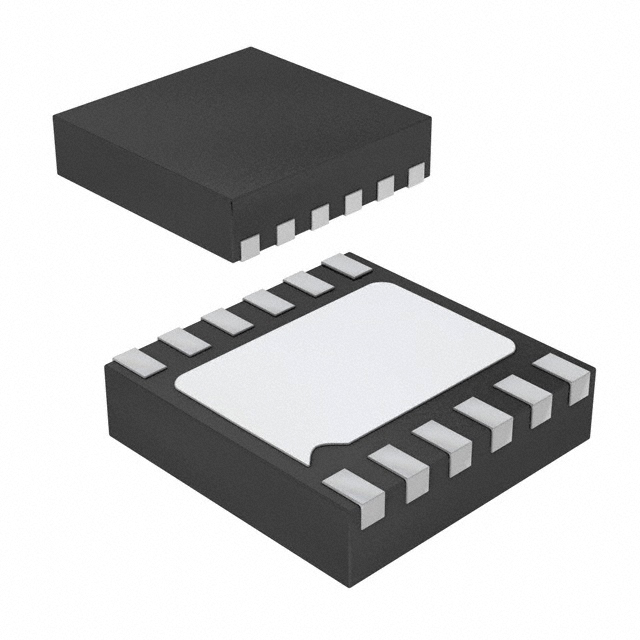

RT8525DGQW
ActiveRichtek USA Inc.
IC REG BOOST CTRLR WDFN-12
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT8525DGQW
ActiveRichtek USA Inc.
IC REG BOOST CTRLR WDFN-12
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT8525DGQW |
|---|---|
| Clock Sync | False |
| Control Features | Frequency Control, Enable, Soft Start |
| Duty Cycle (Max) [Max] | 90 % |
| Frequency - Switching | 200 kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WDFN (3x3) |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) [Max] | 25 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.49 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.26 | |||
| 100 | $ 1.08 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.88 | |||
| Digi-Reel® | 1 | $ 1.49 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.26 | |||
| 100 | $ 1.08 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.88 | |||
| Tape & Reel (TR) | 1500 | $ 0.76 | ||
| 3000 | $ 0.71 | |||
| 4500 | $ 0.69 | |||
| 7500 | $ 0.66 | |||
| 10500 | $ 0.64 | |||
| 15000 | $ 0.63 | |||
Description
General part information
RT8525 Series
Boost Regulator Positive Output Step-Up DC-DC Controller IC 12-WDFN (3x3)
