5-103975-4
ActiveTE Connectivity Raychem Cable Protection

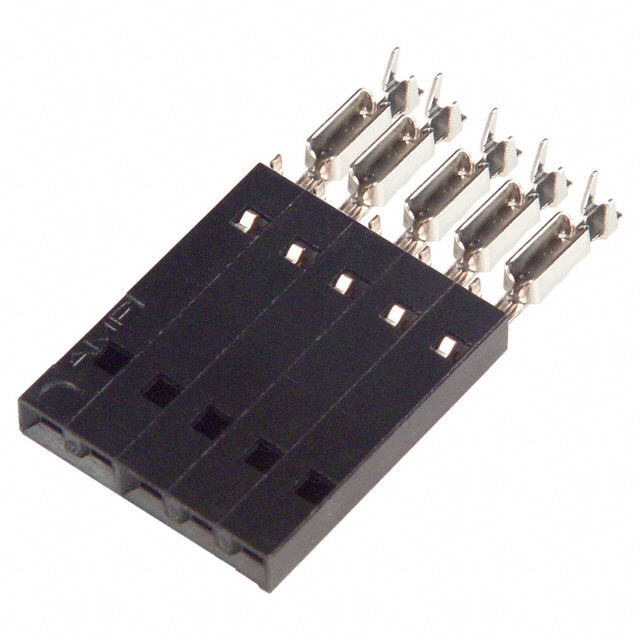

(5-103975-4) 4X5 MTE RCPT SR PLAIN .100CL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103975-4
ActiveTE Connectivity Raychem Cable Protection
(5-103975-4) 4X5 MTE RCPT SR PLAIN .100CL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-103975-4 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Type | Female Socket |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
| Wire Type | Ribbon Cable |
103975 Series
| Part | Features | Contact Type | Number of Positions | Contact Finish | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Wire Type | Number of Rows | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Connector Type | Pitch [x] | Pitch [x] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Closed End | Female Socket | 11 | Gold | IDC | 15 µin | 0.38 µm | Ribbon Cable | 1 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Receptacle | 2.54 mm | 0.1 in | Black |
TE Connectivity Raychem Cable Protection | Closed End | Female Socket | 12 | Gold | IDC | 15 µin | 0.38 µm | Ribbon Cable | 1 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Receptacle | 2.54 mm | 0.1 in | Black |
TE Connectivity Raychem Cable Protection | Closed End | Female Socket | 6 | Gold | IDC | 15 µin | 0.38 µm | Ribbon Cable | 1 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Receptacle | 2.54 mm | 0.1 in | Black |
TE Connectivity Raychem Cable Protection | Closed End | Female Socket | 12 | Gold | IDC | 15 µin | 0.38 µm | Ribbon Cable | 1 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Receptacle | 2.54 mm | 0.1 in | Black |
TE Connectivity Raychem Cable Protection | Closed End | Female Socket | 7 | Gold | IDC | 15 µin | 0.38 µm | Ribbon Cable | 1 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Receptacle | 2.54 mm | 0.1 in | Black |
TE Connectivity Raychem Cable Protection | Female Socket | 9 | Gold | IDC | 15 µin | 0.38 µm | Discrete | 1 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Receptacle | 2.54 mm | 0.1 in | Black | |
TE Connectivity Raychem Cable Protection | Closed End | Female Socket | Gold | IDC | 15 µin | 0.38 µm | Ribbon Cable | 1 | Free Hanging (In-Line) | 22 AWG | 26 AWG | Receptacle | 2.54 mm | 0.1 in | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 4 | $ 1.82 | |
| 12 | $ 1.66 | |||
| 44 | $ 1.62 | |||
| 88 | $ 1.60 | |||
| 132 | $ 1.48 | |||
| 264 | $ 1.46 | |||
| 528 | $ 1.33 | |||
| 1012 | $ 1.19 | |||
| 2508 | $ 1.10 | |||
Description
General part information
103975 Series
5 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
