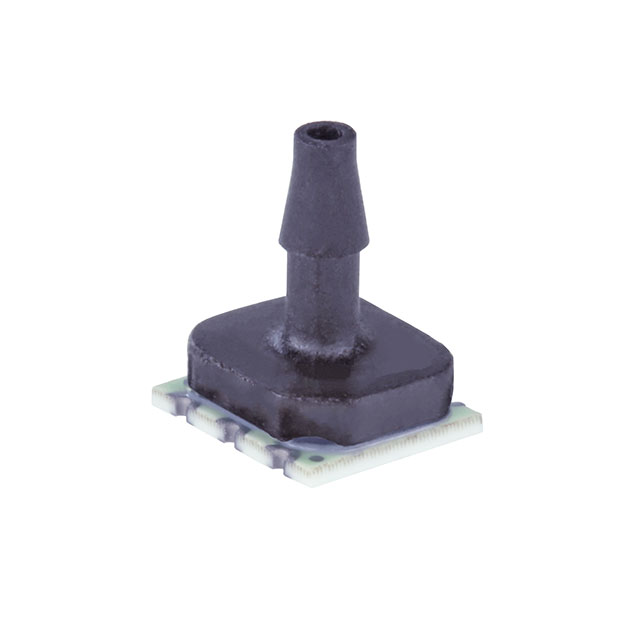

ABPLANN001PG2A5

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 12BIT 6SMD

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 12BIT 6SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ABPLANN001PG2A5

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	30 PSI
Maximum Pressure [Max]	206.84 kPa
Mounting Type	Surface Mount
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	12 b
Output Type	I2C
Pressure Type	Vented Gauge
Supplier Device Package	6-SMD
Termination Style	SMD (SMT) Tab

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Operating Pressure	Operating Pressure	Accuracy	Pressure Type	Output Type	Termination Style	Output	Applications	Supplier Device Package	Maximum Pressure [Max]	Maximum Pressure [Max]
Honeywell Sensing and Productivity Solutions ABPLANN001PG2A5	85 °C	-40 °C	Surface Mount	Amplified Output Temperature Compensated	6.89 kPa	1 PSI	0.25 %	Vented Gauge	I2C	SMD (SMT) Tab	12 b	Medical Ventilation	6-SMD	30 PSI	206.84 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 19.90

General part information

Pressure Sensor 1PSI (6.89kPa) Vented Gauge 12 b 6-SMD Module, No Lead
