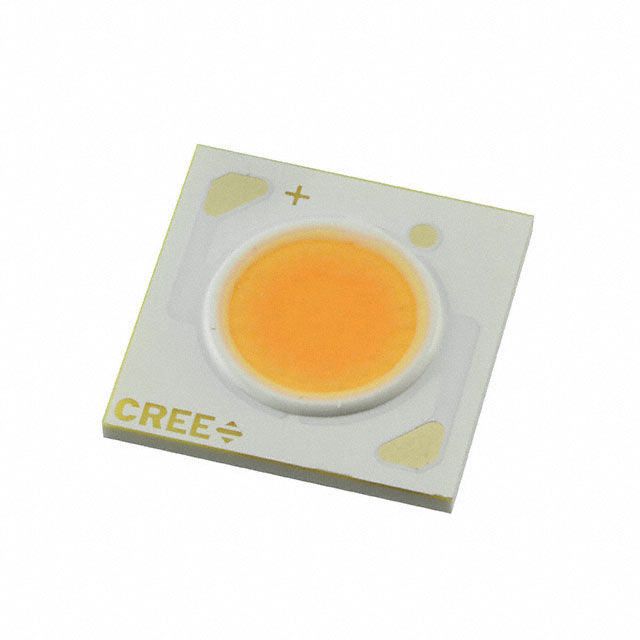

CXB1507-0000-000F0BJ457E

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXB1507-0000-000F0BJ457E

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB1507-0000-000F0BJ457E

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	750 mA
Current - Test	400 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	8.9 mm
Lumens/Watt @ Current - Test	168 lm/W
Luminous Flux @ Current/Temperature	1160 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	17.3 V

CXB1507 Series

...

Part	CRI (Color Rendering Index)	Height [z]	Lumens/Watt @ Current - Test	Current - Max [Max]	Viewing Angle	Type	CCT (K)	Color	Current - Test	Voltage - Forward (Vf) (Typ)	Temperature - Test	Luminous Flux @ Current/Temperature	Configuration	Lens Type	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	CCT (K)
Cree LED CXB1507-0000-000F0BJ457E	70	1.7 mm	168 lm/W	750 mA	115 °	Chip On Board (COB)	5700 K	Cool White	400 mA	17.3 V	85 °C	1160 lm	Square	Flat	8.9 mm
Cree LED CXB1507-0000-000N0BJ440E	70	1.7 mm	168 lm/W	375 mA	115 °	Chip On Board (COB)	4000 K	Neutral White	200 mA	34.5 V	85 °C	1160 lm	Square	Flat	8.9 mm
Cree LED CXB1507-0000-000N0HG222G	80	1.7 mm	120 lm/W	375 mA	115 °	Chip On Board (COB)	2200 K	Warm White	200 mA	33.8 V	85 °C	810 lm	Square	Flat	8.9 mm
Cree LED CXB1507-0000-000N0HG427H	80	1.7 mm	121 lm/W	375 mA	115 °	Chip On Board (COB)	2700 K	Warm White	200 mA	36 V	85 °C	870 lm	Square	Flat	8.9 mm
Cree LED CXB1507-0000-00PF0U0A35G	90	1.7 mm		750 mA	115 °	Chip On Board (COB)	3500 K	Warm White	400 mA	16.9 V	85 °C		Square	Flat	8.9 mm
Cree LED CXB1507-0000-000F0UG440Q	90	1.7 mm	121 lm/W	750 mA	115 °	Chip On Board (COB)	4000 K	Neutral White	400 mA	18 V	85 °C	870 lm	Square	Flat	8.9 mm
Cree LED CXB1507-0000-000F0BH440E	70	1.7 mm	140 lm/W	750 mA	115 °	Chip On Board (COB)	4000 K	Neutral White	400 mA	18 V	85 °C	1005 lm	Square	Flat	8.9 mm	1040 lm	970 lm
Cree LED CXB1507-0000-000F0HG430G	80	1.7 mm	121 lm/W	750 mA	115 °	Chip On Board (COB)	3000 K	Warm White	400 mA	18 V	85 °C	870 lm	Square	Flat	8.9 mm
Cree LED CXB1507-0000-000N0BH450E	70	1.7 mm	140 lm/W	375 mA	115 °	Chip On Board (COB)	5000 K	Cool White	200 mA	36 V	85 °C	1005 lm	Square	Flat	8.9 mm	1040 lm	970 lm	5-Step MacAdam Ellipse
Cree LED CXB1507-0000-000N0UG230H	90	1.7 mm	113 lm/W	375 mA	115 °	Chip On Board (COB)	3000 K	Warm White	200 mA	36 V	85 °C	810 lm	Square	Flat	8.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 4.25

Description

General part information

CXB1507 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXB1507 White, Cool Square
