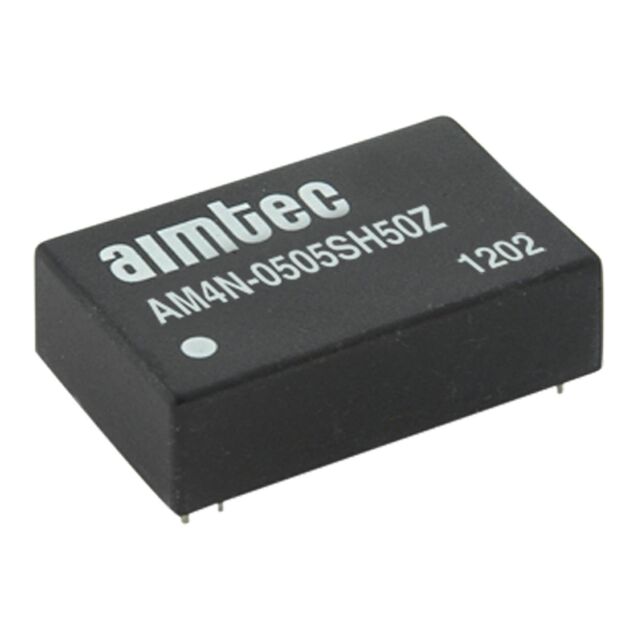

AM4N-0505SH50Z
Activeaimtec
DC DC CONVERTER 5V 3.5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM4N-0505SH50Z
Activeaimtec
DC DC CONVERTER 5V 3.5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM4N-0505SH50Z |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 700 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 7 Leads |
| Power (Watts) | 3.5 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Isolation | 5000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AM4N Series
Isolated Module DC DC Converter 1 Output 5V 700mA 4V - 6V Input
