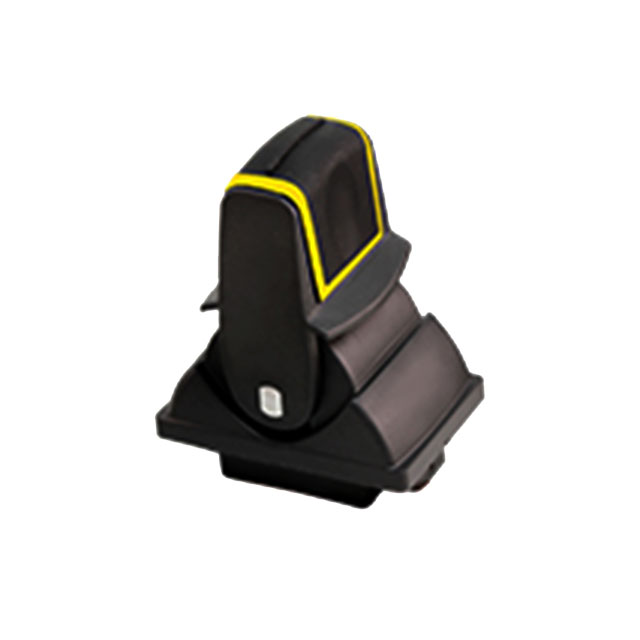

68B-415-6
ActiveGrayhill Inc.
SWITCH JOYSTICK PADDLE HALL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
68B-415-6
ActiveGrayhill Inc.
SWITCH JOYSTICK PADDLE HALL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 68B-415-6 |
|---|---|
| Actuator Type | Paddle |
| Features | Yellow Actuator |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 200000 Cycles |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Dimensions [x] | 35.81 mm |
| Panel Cutout Dimensions [y] | 21.34 mm |
| Switch Function | 2-Way Directional |
| Termination Style | Cable with Connector |
| Type | Joystick, 1 - Axis |
| Voltage - Supply | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 91.88 | |
Description
General part information
68B-415 Series
Joystick, 1 - Axis Analog (Hall Effect) Output
Documents
Technical documentation and resources
