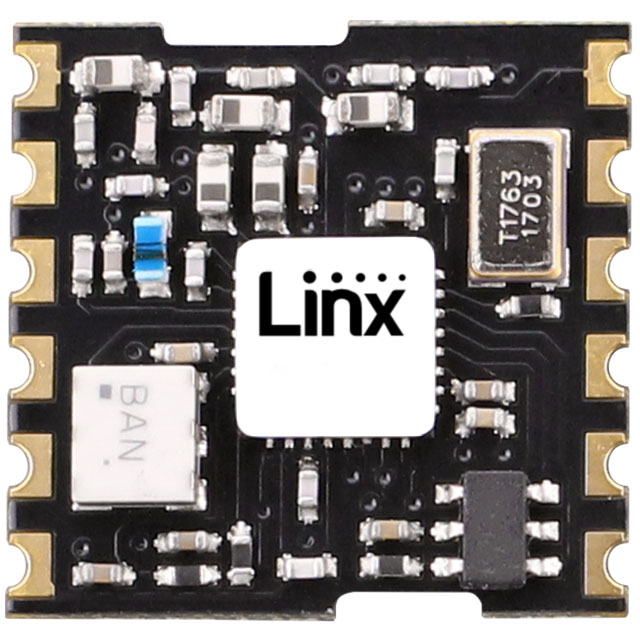

TRM-315-LT
ActiveTE Connectivity Linx
RF TXRX MOD ISM<1GHZ CAST SMD
Deep-Dive with AI
Search across all available documentation for this part.
TRM-315-LT
ActiveTE Connectivity Linx
RF TXRX MOD ISM<1GHZ CAST SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TRM-315-LT |
|---|---|
| Antenna Type | Castellation |
| Current - Receiving | 6.1 mA |
| Current - Transmitting [Max] | 12 mA |
| Current - Transmitting [Min] | 4 mA |
| Data Rate | 9.8 kbps |
| Frequency | 315 MHz |
| Modulation | ASK, OOK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-SMD Module |
| Power - Output | 9.2 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -112 dBm |
| Serial Interfaces | Serial |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 25.40 | |
Description
General part information
TRM-315 Series
General ISM < 1GHz Transceiver Module 315MHz Castellation Surface Mount
