G51M07-P08LFG0-0020

Active

ODU

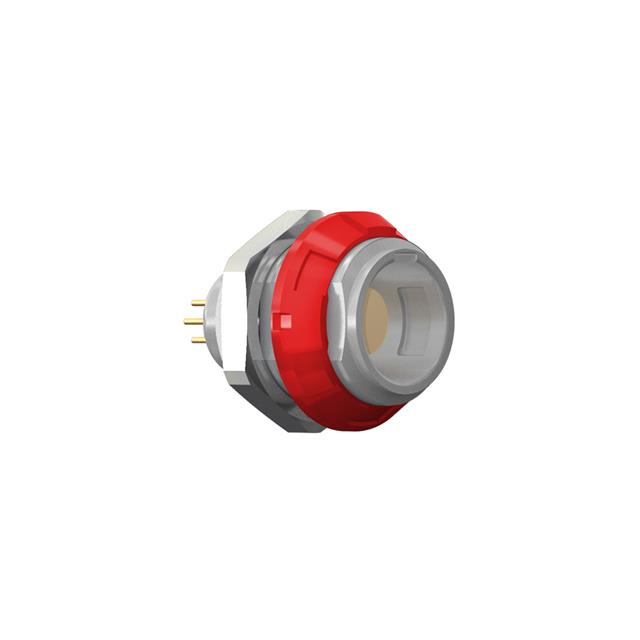

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G51M07-P08LFG0-0020

Active

ODU

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G51M07-P08LFG0-0020

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Gray, Red
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	3.85 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	8
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

G51M07-P Series

...

Part	Contact Material	Shielding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Feature	Applications	Shell Material	Ingress Protection	Shell Size - Insert	Fastening Type	Primary Material	Color	Insert Material	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Number of Positions	Termination	Mounting Type
ODU G51M07-P05LJG0-0050	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray Green	Polyetheretherketone (PEEK)	7.5 A
ODU G51M07-P12LCC9-0020	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray Red	Polyetheretherketone (PEEK)	4 A	UL94 V-0	25 V	12
ODU G51M07-P12QC09-A060	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Blue Gray	Polyetheretherketone (PEEK)	4 A	UL94 V-0	25 V	12	Solder	Panel Mount Through Hole
ODU G51M07-P07LFD0-0030	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray White	Polyetheretherketone (PEEK)	4.55 A			7
ODU G51M07-P12LCC9-0050	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray Green	Polyetheretherketone (PEEK)	4 A	UL94 V-0	25 V	12
ODU G51M07-P08LFG0-0020	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray Red	Polyetheretherketone (PEEK)	3.85 A			8
ODU G51M07-P02QP00-A020	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray Red	Polyetheretherketone (PEEK)	12 A	UL94 V-0	48 VDC	2	Solder	Panel Mount Through Hole
ODU G51M07-P04LJH0-0060	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Blue Gray	Polyetheretherketone (PEEK)	10 A	UL94 V-0	37 V	4
ODU G51M07-P09LCC0-0030	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Medical Military Testing Equipment & Measurement	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray White	Polyetheretherketone (PEEK)	2.75 A			9
ODU G51M07-P09QC00-0020	Brass	Unshielded	Receptacle Female Sockets	-50 °C	120 °C	Gold	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	IP50	1	Detent Lock Push-Pull	Plastic	Gray Red	Polyetheretherketone (PEEK)	4 A	UL94 V-0	33 V	9	Solder	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.07

Description

General part information

G51M07-P Series

8 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources
