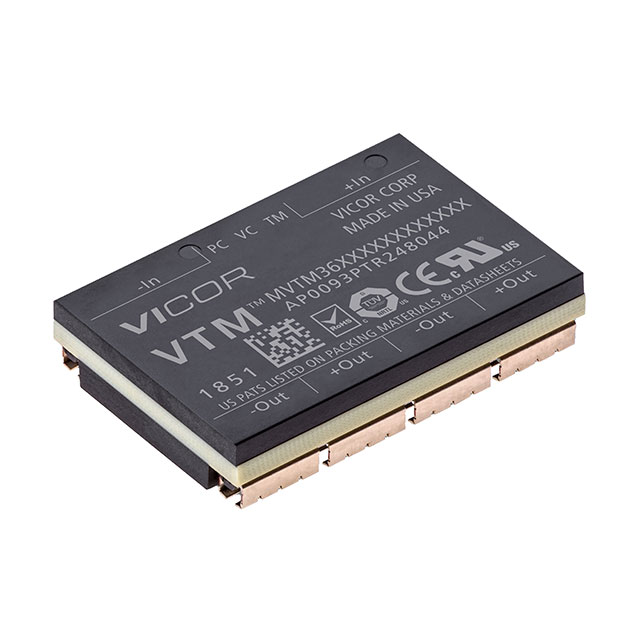

MVTM36BT045M027A00

Active

Vicor Corporation

DC DC CONVERTER 4.5V 150W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 4.5V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	MVTM36BT045M027A00

Applications	ITE (Commercial)
Efficiency	94.7 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Module
Power (Watts)	150 W
Size / Dimension [x]	1.28 in
Size / Dimension [x]	32.5 mm
Size / Dimension [y]	22 mm
Size / Dimension [y]	0.87 in
Size / Dimension [z]	6.7 mm
Size / Dimension [z]	0.26 "
Type	Voltage Transformation Module
Voltage - Input (Max) [Max]	50 V
Voltage - Input (Min) [Min]	26 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	4.5 V

Part	Mounting Type	Number of Outputs	Efficiency	Package / Case	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Features	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Current - Output (Max) [Max]
Vicor Corporation MVTM36BT120M010A00	Through Hole	1	95 %	Module	2250 VDC	-55 °C	125 °C	12 V	Voltage Transformation Module	OCP OTP OVP SCP	150 W	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	50 V	26 V	ITE (Commercial)	10 A
Vicor Corporation MVTM36BF030M040B00	Surface Mount	1	94 %	Module	2250 VDC	-55 °C	125 °C	3 V	Voltage Transformation Module	OCP OTP OVP SCP	150 W	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	50 V	26 V	ITE (Commercial)	40 A
Vicor Corporation MVTM36BT045M027A00	Through Hole	1	94.7 %	Module	2250 VDC	-55 °C	125 °C	4.5 V	Voltage Transformation Module	OCP OTP OVP SCP	150 W	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	50 V	26 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 176.01

General part information

Voltage Transformation Module DC DC Converter 1 Output 4.5V 27A 26V - 50V Input
