1091949
ActiveSICK, Inc.

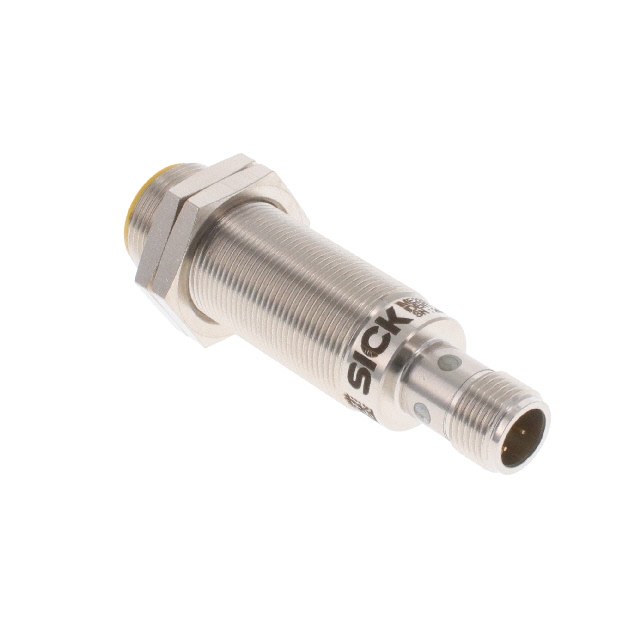

SENSOR PROX INDUCTIVE 5MM CYLIND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1091949
ActiveSICK, Inc.
SENSOR PROX INDUCTIVE 5MM CYLIND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1091949 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | Semiconductor (OSSD) |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 100 Hz |
| Sensing Distance | 0.197 in |
| Sensing Distance | 5 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 28.8 VDC |
| Voltage - Supply [Min] | 19.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 199.60 | |
| 10 | $ 182.97 | |||
Description
General part information
IME2S18 Series
SENSOR PROX INDUCTIVE 5MM CYLIND
