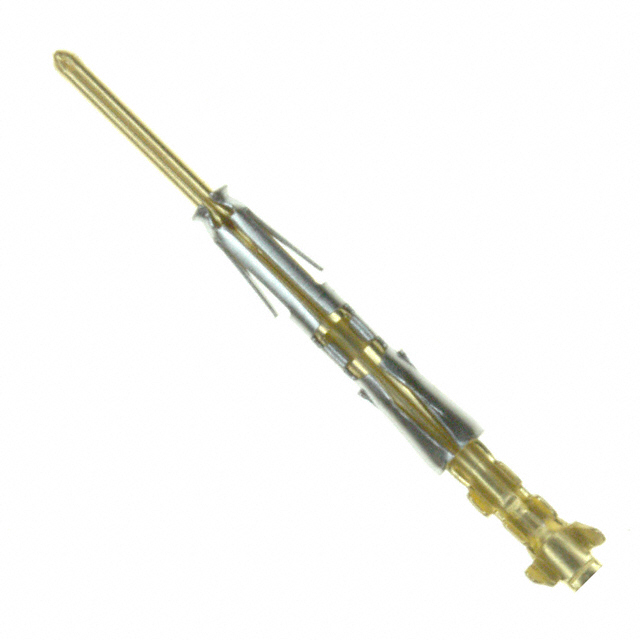

SM24W-3S26
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 24-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM24W-3S26
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 24-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM24W-3S26 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.75 µm |
| Contact Finish Thickness | 29.5 µin |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Features | Insulation Support |
| Termination Finish | Gold |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 24 AWG |
| Wire Gauge or Range - mm² [Max] | 0.25 mm² |
| Wire Gauge or Range - mm² [Min] | 0.12 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.92 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.60 | |||
| Tape & Reel (TR) | 3000 | $ 0.54 | ||
| 6000 | $ 0.52 | |||
| 9000 | $ 0.50 | |||
| 15000 | $ 0.49 | |||
Description
General part information
SM24W Series
Pin Contact 24-26 AWG Size 20 Crimp Gold
