M55-6006842R

Active

Harwin Inc.

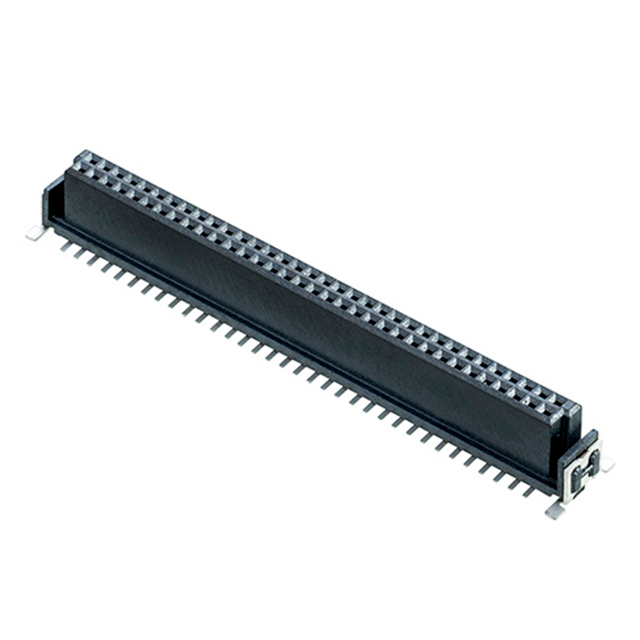

CONN RCPT 68POS 0.05 GOLD SMD

Search across all available documentation for this part.

Active

Harwin Inc.

CONN RCPT 68POS 0.05 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	M55-6006842R

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Female Socket
Current Rating (Amps)	1.2 A
Fastening Type	Latch Holder
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	0.246 in
Insulation Height	6.25 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	11.1 mm, 8 mm, 9.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	100 VAC

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Post	Mated Stacking Heights	Applications	Mounting Type	Number of Rows	Termination	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Material	Current Rating (Amps)	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Shape	Insulation Color	Insulation Height	Insulation Height
Harwin Inc. M55-6004042R	All	1 µin	0.025 µm	100 VAC	Tin	8 mm 9.5 mm 11.1 mm	Automotive General Purpose Industrial	Surface Mount	2	Solder	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	40	Latch Holder	-55 °C	125 °C	Gold	Female Socket	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	1.2 A	Receptacle	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Rectangular	Black	0.246 in	6.25 mm
Harwin Inc. M55-6006842R	All	1 µin	0.025 µm	100 VAC	Tin	8 mm 9.5 mm 11.1 mm	Automotive General Purpose Industrial	Surface Mount	2	Solder	Liquid Crystal Polymer (LCP)	2.54 µm	100 µin	68	Latch Holder	-55 °C	125 °C	Gold	Female Socket	0.05 in	1.27 mm	UL94 V-0	Phosphor Bronze	1.2 A	Receptacle	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Rectangular	Black	0.246 in	6.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Technical documentation and resources
