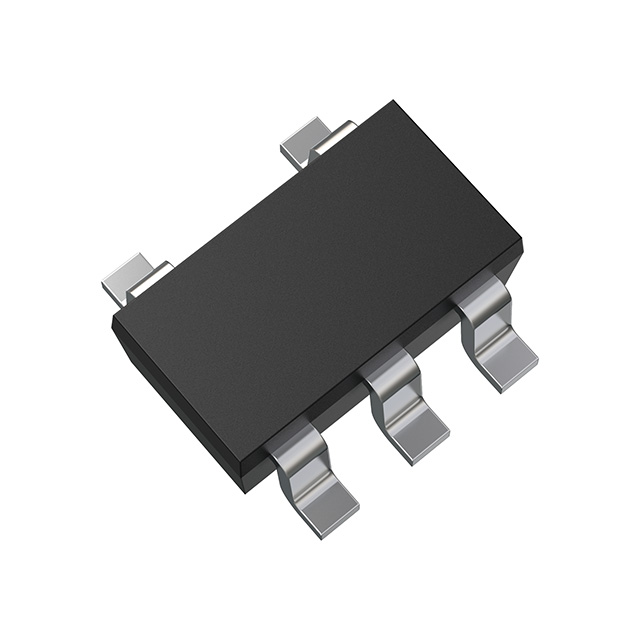

TC75S102F,LF(CT
ActiveToshiba Semiconductor and Storage
IC CMOS 1 CIRCUIT SMV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC75S102F,LF(CT
ActiveToshiba Semiconductor and Storage
IC CMOS 1 CIRCUIT SMV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC75S102F,LF(CT |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 11 mA |
| Current - Supply | 350 nA |
| Gain Bandwidth Product | 630 Hz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SMV |
| Voltage - Input Offset | 100 çV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.39 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.48 | |||
| 25 | $ 0.39 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
| 6000 | $ 0.15 | |||
| 9000 | $ 0.15 | |||
| 15000 | $ 0.14 | |||
| 21000 | $ 0.13 | |||
| 30000 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
Description
General part information
TC75S102 Series
CMOS Amplifier 1 Circuit SMV
