0192700038

Active

Molex

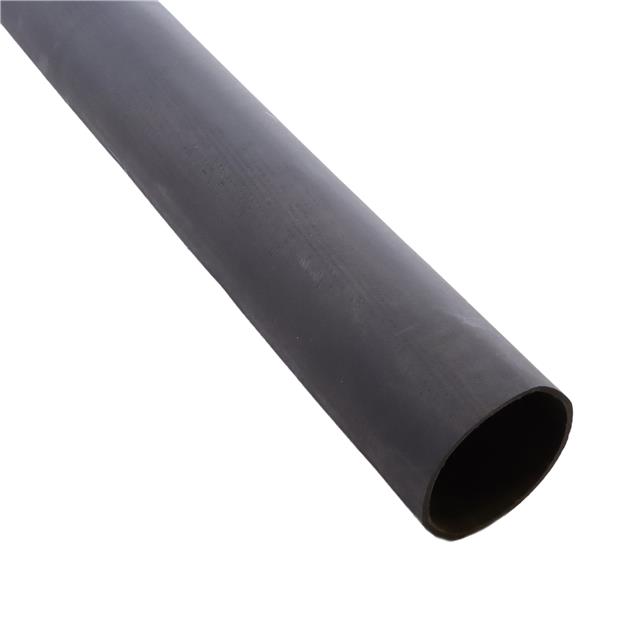

HEATSHRINK 1-1/2" X 4' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSolderless Terminals, Terminal Blocks and Connector Catalog

0192700038

Active

Molex

HEATSHRINK 1-1/2" X 4' BLACK

Deep-Dive with AI

DocumentsSolderless Terminals, Terminal Blocks and Connector Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0192700038

Color	Black
Features	Abrasion Resistant, Immersion Resistant, Direct Burial
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	38.1 mm
Inner Diameter - Supplied [diameter]	1.5 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	3.56 mm
Recovered Wall Thickness	0.14 in
Shrink Temperature	120 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Semi Rigid

019270 Series

Part	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Type	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness
Molex 0192700048	Abrasion Resistant Direct Burial Immersion Resistant	0.155 "	3.94 mm	1	3	Polyolefin (PO) Irradiated	19.05 mm	0.75 "	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Black	50.8 mm	2 in
Molex 0192700033	Abrasion Resistant Direct Burial Immersion Resistant	3.05 mm		1	3	Polyolefin (PO) Irradiated	9.53 mm	0.375 in	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Red	27.94 mm	1.1 in	0.12 in
Molex 0192700023	Abrasion Resistant Direct Burial Immersion Resistant	2.41 mm		1	3	Polyolefin (PO) Irradiated	5.59 mm	0.22 in	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Red			0.095 in
Molex 0192700043	Abrasion Resistant Direct Burial Immersion Resistant	3.56 mm		1	3	Polyolefin (PO) Irradiated	12.7 mm	0.5 in	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Red	38.1 mm	1.5 in	0.14 in
Molex 0192700053	Abrasion Resistant Direct Burial Immersion Resistant	0.155 "	3.94 mm	1	3	Polyolefin (PO) Irradiated	19.05 mm	0.75 "	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Red	50.8 mm	2 in
Molex 0192700013	Abrasion Resistant Direct Burial Immersion Resistant	1.52 mm		1	3	Polyolefin (PO) Irradiated	3.81 mm	0.15 "	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Red	10.16 mm	0.4 in	0.06 in
Molex 0192700018	Abrasion Resistant Direct Burial Immersion Resistant	2.41 mm		1	3	Polyolefin (PO) Irradiated	5.59 mm	0.22 in	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Black			0.095 in
Molex 0192700038	Abrasion Resistant Direct Burial Immersion Resistant	3.56 mm		1	3	Polyolefin (PO) Irradiated	12.7 mm	0.5 in	120 °C	-55 °C	110 °C	1.22 m	4 ft	Tubing Semi Rigid	Black	38.1 mm	1.5 in	0.14 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.91
		2	$ 33.95
		3	$ 32.32
		5	$ 30.39
		7	$ 29.18
		10	$ 27.95
		25	$ 25.02
		50	$ 23.01
		100	$ 22.82

Description

General part information

019270 Series

Heat Shrink Tubing, Semi Rigid 1.500" (38.10mm) 3 to 1 Black 4.00' (1.22m)

Documents

Technical documentation and resources

Solderless Terminals, Terminal Blocks and Connector Catalog

Datasheet
