IA18FLN08PO
ObsoleteCARLO GAVAZZI

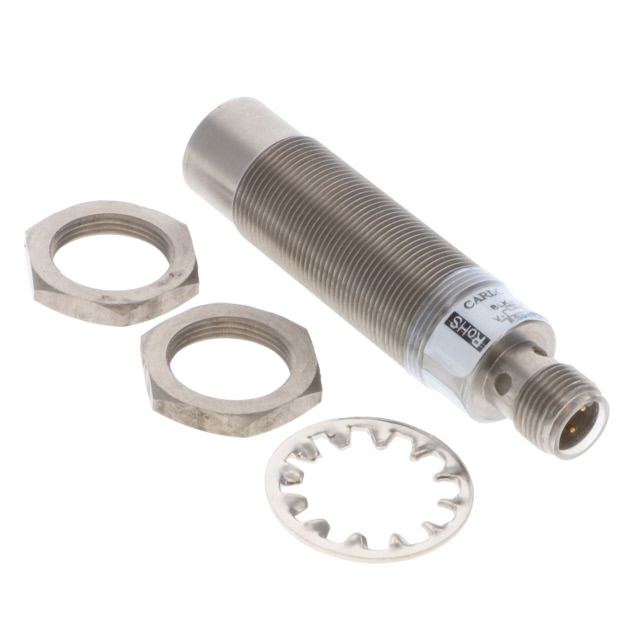

SENSOR PROX INDUCTIVE 8MM CYLIND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IA18FLN08PO
ObsoleteCARLO GAVAZZI
SENSOR PROX INDUCTIVE 8MM CYLIND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IA18FLN08PO |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 1 kHz |
| Sensing Distance | 0.315 in |
| Sensing Distance | 8 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IA18FLN08 Series
SENSOR PROX INDUCTIVE 8MM CYLIND
Documents
Technical documentation and resources
