EB0268-000

Obsolete

TE Energy & Utilities

CPGI-2-1838176-0-75

Search across all available documentation for this part.

Obsolete

TE Energy & Utilities

CPGI-2-1838176-0-75

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Terminal Type	Tab Thickness	Tab Thickness	Termination	Gender	Mounting Type	Color	Contact Material	Contact Finish	Tab Width	Tab Width	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Wire Gauge [Max]	Wire Gauge [Min]	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter	Insulation Diameter	Length - Termination	Length - Termination	Stud/Tab Size	Material - Insulation	Width - Outer Edges	Width - Outer Edges	Length - Overall [x]	Length - Overall [x]
TE Energy & Utilities EB0276-000	0.135 in	3.43 mm	Standard	0.032 in	0.81 mm	Crimp	Male	Free Hanging (In-Line)	Red	Brass	Tin	6.35 mm	0.25 in	Fully Insulated	22 AWG	17.5 AWG
TE Energy & Utilities EB0279-000			Standard			Crimp	Male	Free Hanging (In-Line)						Fully Insulated	22 AWG	17.5 AWG
TE Energy & Utilities EB0296-000			Butt Splice Individual Openings Inline			Crimp			Blue					Fully Insulated			2	16 AWG	1 mm˛	14 AWG	2.6 mm˛
TE Energy & Utilities EB0268-000			Standard			Crimp		Free Hanging (In-Line)	Blue	Copper	Tin			Insulated								0.185 in	4.7 mm	0.433 in	11 mm	M5 Stud	Vinyl	8 mm	0.315 in	0.886 in	22.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

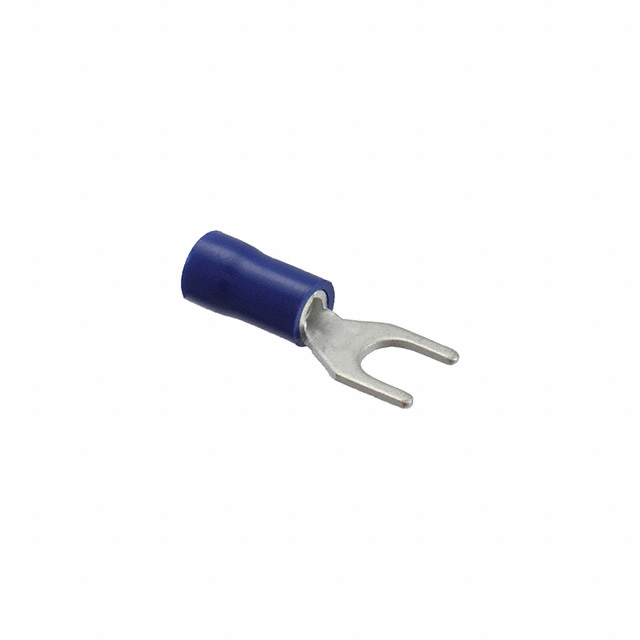

Blue M5 Stud Spade Terminal Connector Crimp 14-16 AWG
