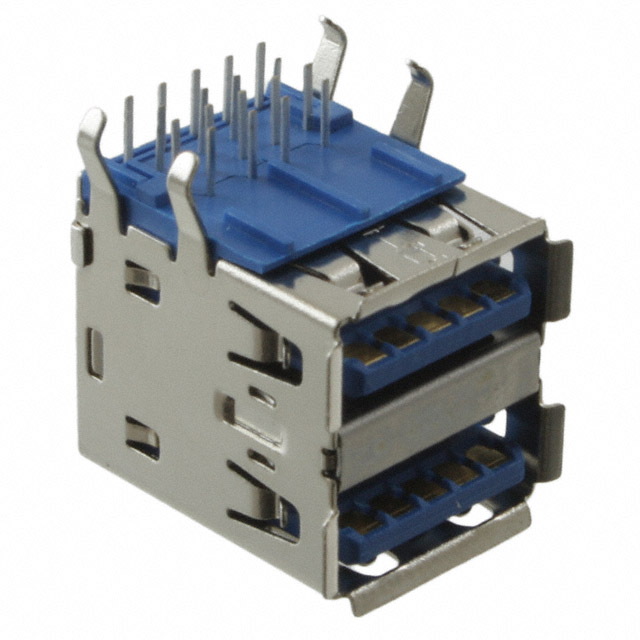

1003-004-01010 - 1003-004-01010

1003-004-01010

Active
CnC Tech, LLC

CONN RCPT USB3.0 TYPEA STACK R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUSB Soldering Profile (After DC 20/02)Soldering Recommendations for USBs+1
1003-004-01010 - 1003-004-01010

1003-004-01010

Active
CnC Tech, LLC

CONN RCPT USB3.0 TYPEA STACK R/A

Deep-Dive with AI

DocumentsUSB Soldering Profile (After DC 20/02)Soldering Recommendations for USBs+1

Technical Specifications

Parameters and characteristics for this part

Specification1003-004-01010
Connector TypeUSB-A (USB TYPE-A), Stacked
Contact FinishGold
Current Rating (Amps)1.8 A, 0.25 A
GenderReceptacle
Insulation ColorBlue
Material Flammability RatingUL94 V-0
Mating Cycles5000
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Right Angle
Number of Ports2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Shell/Shielding MaterialBrass
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.62
10$ 4.20
25$ 3.97
40$ 3.88
80$ 3.70
230$ 3.23
440$ 3.14
2000$ 2.59
4000$ 2.50

Description

General part information

1003-004 Series

USB-A (USB TYPE-A), Stacked USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 18 Position Through Hole, Right Angle
