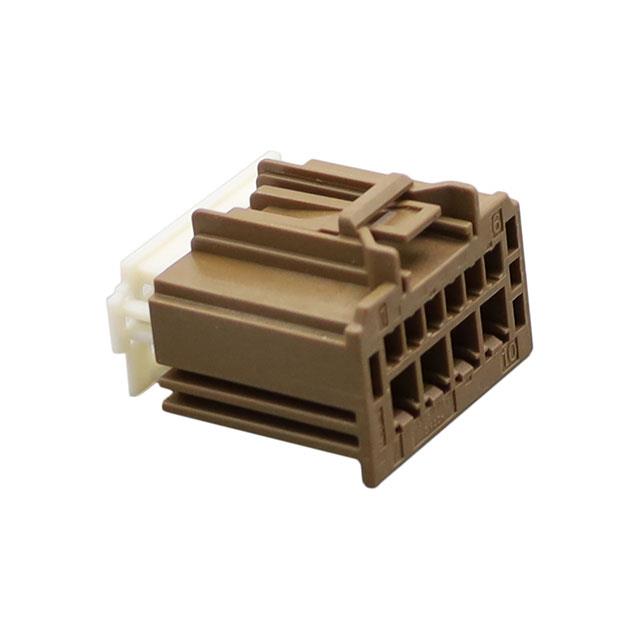

0313721200

Active

Molex

CONN RCPT HSG 10POS

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 10POS

Technical Specifications

Parameters and characteristics for this part

Specification	0313721200

Color	Brown
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA)
Insulation Material	Syndiotatic Polystyrene (SPS), Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Row Spacing	6.3 mm
Row Spacing	0.248 in

Part	Insulation Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing	Row Spacing	Features	Color	Contact Termination	Mounting Type	Contact Type	Number of Positions	Connector Type	Note	Fastening Type
Molex 0313721600	Polyamide (PA66) Nylon 6/6 Glass Filled	2	100 °C	-40 °C	6.3 mm	0.248 in	Connector Position Assurance (CPA)	Black	Crimp	Free Hanging (In-Line)	Female Socket	10	Receptacle	Contacts Not Included	Latch Lock
Molex 0313721800	Polyamide (PA66) Nylon 6/6 Glass Filled	2	105 ░C	-40 °C			Connector Position Assurance (CPA) Sealed Terminal Position Assurance (TPA)	Brown	Crimp	Free Hanging (In-Line)	Female Socket	10	Receptacle		Latch Holder
Molex 0313721000	Polyamide (PA66) Nylon 6/6 Glass Filled Syndiotatic Polystyrene (SPS)	2	100 °C	-40 °C	6.3 mm	0.248 in	Polarizing Key	Black	Crimp	Free Hanging (In-Line)	Female Socket	10	Receptacle	Contacts Not Included	Latch Lock
Molex 0313721700		2	100 °C	-40 °C			Connector Position Assurance (CPA)		Crimp	Free Hanging (In-Line)	Female Socket	10	Receptacle		Latch Holder
Molex 0313721100	Polyamide (PA66) Nylon 6/6 Glass Filled Syndiotatic Polystyrene (SPS)	2	100 °C	-40 °C	6.3 mm	0.248 in	Polarizing Key	Gray	Crimp	Free Hanging (In-Line)	Female Socket	10	Receptacle	Contacts Not Included	Latch Lock
Molex 0313721200	Polyamide (PA66) Nylon 6/6 Glass Filled Syndiotatic Polystyrene (SPS)	2	100 °C	-40 °C	6.3 mm	0.248 in	Connector Position Assurance (CPA)	Brown	Crimp	Free Hanging (In-Line)	Female Socket	10	Receptacle		Latch Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Receptacle Brown
