430078-525
ActiveLaird Thermal Systems, Inc.

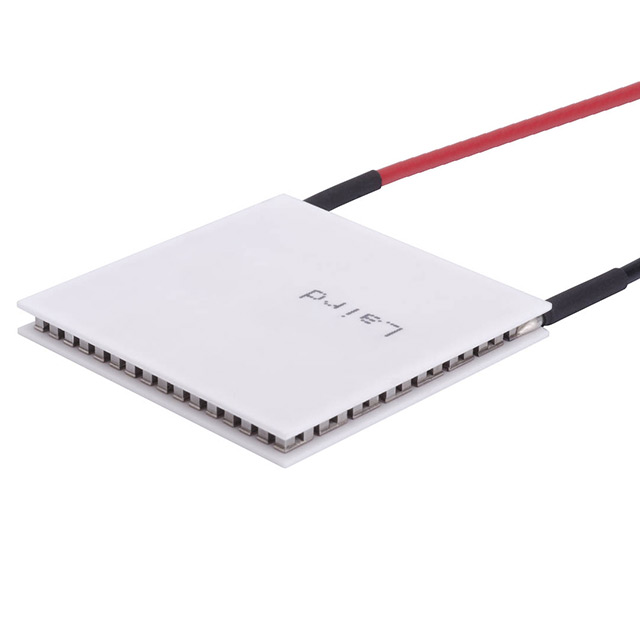

PELTIER CP14,127,06,L1,EP,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
430078-525
ActiveLaird Thermal Systems, Inc.
PELTIER CP14,127,06,L1,EP,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430078-525 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 51.4 W |
| Resistance | 2.25 Ohms |
| Size / Dimension [x] | 39.88 mm |
| Size / Dimension [y] | 39.88 mm |
| Voltage - Max [Max] | 14.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.55 | |
| 20 | $ 28.86 | |||
| 100 | $ 26.35 | |||
Description
General part information
430078 Series
Peltier Module 51.4W @ 25°C 6 A 80°C
Documents
Technical documentation and resources
