SMS6GE3J

Active

Souriau-Sunbank by Eaton

CONN RCPT 6POS 0.2 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

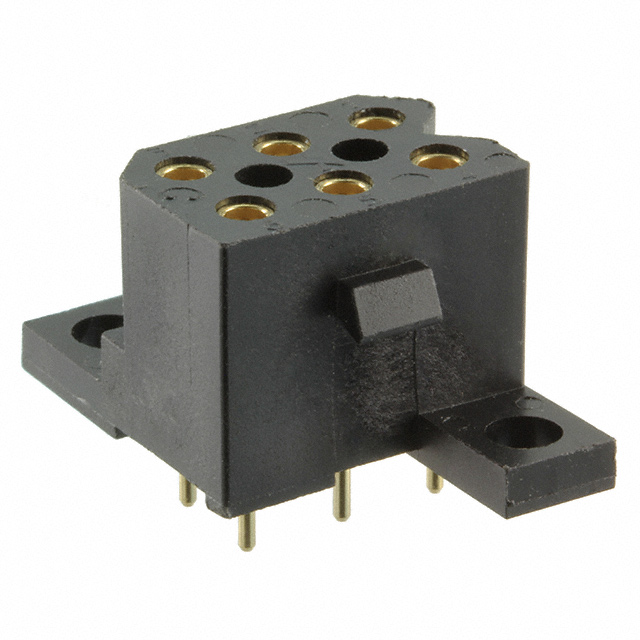

SMS6GE3J

Active

Souriau-Sunbank by Eaton

CONN RCPT 6POS 0.2 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMS6GE3J

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	7.5 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP40
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Style	Board to Board, Cable
Termination	Solder

SMS6G Series

Part	Ingress Protection	Mounting Type	Features	Number of Positions Loaded	Contact Material	Contact Shape	Number of Positions	Fastening Type	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Style	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating
Souriau-Sunbank by Eaton SMS6GE53	IP40	Through Hole Right Angle	Mounting Flange	All	Copper Alloy	Circular	6	Locking Ramp	0.177 in	4.5 mm	7.5 A	Solder	105 ░C	-55 °C	Female Socket	Board to Board Cable	5.08 mm	0.2 in	Receptacle	2	UL94 V-0	5.08 mm	0.2 "	Black
Souriau-Sunbank by Eaton SMS6GE5	IP40	Through Hole Right Angle	Mounting Flange	All	Copper Alloy	Circular	6	Locking Ramp	0.177 in	4.5 mm	7.5 A	Solder	105 ░C	-55 °C	Female Socket	Board to Board Cable	5.08 mm	0.2 in	Receptacle	2	UL94 V-0	5.08 mm	0.2 "	Black	Gold	16 Áin	0.41 Ám
Souriau-Sunbank by Eaton SMS6GE4T	IP40	Through Hole	Mounting Flange	All	Brass	Circular	6	Locking Ramp	0.138 in	3.5 mm	7.5 A	Solder	105 ░C	-55 °C	Male Pin	Board to Cable/Wire	5.08 mm	0.2 in	Header	2	UL94 V-0	5.08 mm	0.2 "	Black			118.1 µin	0.28 in	7.11 mm	13.35 mm	0.526 in	3 µm	Tin	23.85 mm	0.939 "	3 µm	118.1 µin	Polyester Glass Filled	Unshrouded
Souriau-Sunbank by Eaton SMS6GE3	IP40	Through Hole	Mounting Flange	All	Copper Alloy	Circular	6	Locking Ramp			7.5 A	Solder	105 ░C	-55 °C	Female Socket	Board to Board Cable	5.08 mm	0.2 in	Receptacle	2	UL94 V-0	5.08 mm	0.2 "	Black	Gold	16 Áin	0.41 Ám													0.134 in	3.4 mm
Souriau-Sunbank by Eaton SMS6GE5T	IP40	Through Hole Right Angle	Mounting Flange	All	Copper Alloy	Circular	6	Locking Ramp	0.177 in	4.5 mm	7.5 A	Solder	105 ░C	-55 °C	Female Socket	Board to Board Cable	5.08 mm	0.2 in	Receptacle	2	UL94 V-0	5.08 mm	0.2 "	Black			118.1 µin					3 µm	Tin			3 µm	118.1 µin
Souriau-Sunbank by Eaton SMS6GE3J	IP40	Through Hole	Mounting Flange	All	Copper Alloy	Circular	6	Locking Ramp			7.5 A	Solder	105 ░C	-55 °C	Female Socket	Board to Board Cable	5.08 mm	0.2 in	Receptacle	2	UL94 V-0	5.08 mm	0.2 "	Black	Gold															0.134 in	3.4 mm	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.26

Description

General part information

SMS6G Series

6 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold
