AMP2511-07

Active

Astrodyne TDI

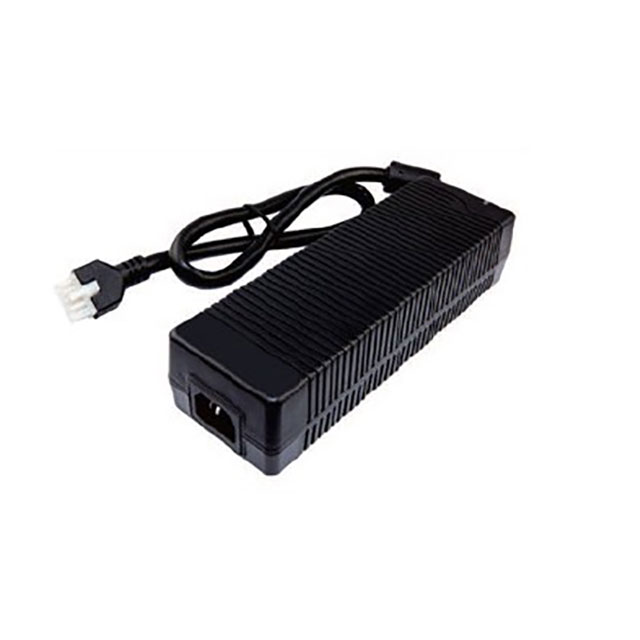

AC/DC DESKTOP ADAPTER 19V 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMP2511-07

Active

Astrodyne TDI

AC/DC DESKTOP ADAPTER 19V 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMP2511-07

Applications	Medical
Approval Agency	cURus, FCC, CE, TUV, CB
Cord Length	24 in
Cord Length	609.6 mm
Current - Output (Max) [Max]	13.15 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption	210 mW
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Output Connector	Rectangular, 10 Position
Power (Watts)	250 W
Region Utilized	International
Size / Dimension [x]	199.9 mm
Size / Dimension [x]	7.87 in
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.56 "
Size / Dimension [z]	45 mm
Size / Dimension [z]	1.77 in
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

AMP2511 Series

Part	Input Type	Voltage - Output	Form	Cord Length	Cord Length	Efficiency	Region Utilized	Applications	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Input Connector	Standard Number	Current - Output (Max) [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Approval Agency	No Load Power Consumption
Astrodyne TDI AMP2511-11	Cord	48 V	Desktop (Class I)	24 in	609.6 mm	Level VI	International	Medical	250 W	65 mm	2.56 "	45 mm	1.77 in	199.9 mm	7.87 in	IEC 320-C14	60601-1	5.2 A	-10 °C	158 °F	90 VAC	264 VAC	Rectangular 10 Position	CB CE cURus FCC TUV	210 mW
Astrodyne TDI AMP2511-10	Cord	36 V	Desktop (Class I)	24 in	609.6 mm	Level VI	International	Medical	250 W	65 mm	2.56 "	45 mm	1.77 in	199.9 mm	7.87 in	IEC 320-C14	60601-1	6.94 A	-10 °C	158 °F	90 VAC	264 VAC	Rectangular 10 Position	CB CE cURus FCC TUV	210 mW
Astrodyne TDI AMP2511-09	Cord	30 VDC	Desktop (Class I)	24 in	609.6 mm	Level VI	International	Medical	250 W	65 mm	2.56 "	45 mm	1.77 in	199.9 mm	7.87 in	IEC 320-C14	60601-1	8.32 A	-10 °C	158 °F	90 VAC	264 VAC	Rectangular 10 Position	CB CE cURus FCC TUV	210 mW
Astrodyne TDI AMP2511-08	Cord	24 V	Desktop (Class I)	24 in	609.6 mm	Level VI	International	Medical	250 W	65 mm	2.56 "	45 mm	1.77 in	199.9 mm	7.87 in	IEC 320-C14	60601-1	10.41 A	-10 °C	158 °F	90 VAC	264 VAC	Rectangular 10 Position	CB CE cURus FCC TUV	210 mW
Astrodyne TDI AMP2511-05	Cord	12 V	Desktop (Class I)	24 in	609.6 mm	Level VI	International	Medical	230 W	65 mm	2.56 "	45 mm	1.77 in	199.9 mm	7.87 in	IEC 320-C14	60601-1	19.16 A	-10 °C	158 °F	90 VAC	264 VAC	Rectangular 10 Position	CB CE cURus FCC TUV	210 mW
Astrodyne TDI AMP2511-07	Cord	19 V	Desktop (Class I)	24 in	609.6 mm	Level VI	International	Medical	250 W	65 mm	2.56 "	45 mm	1.77 in	199.9 mm	7.87 in	IEC 320-C14	60601-1	13.15 A	-10 °C	158 °F	90 VAC	264 VAC	Rectangular 10 Position	CB CE cURus FCC TUV	210 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 285.70
		10	$ 259.72
		25	$ 236.11

Description

General part information

AMP2511 Series

19V 250 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
