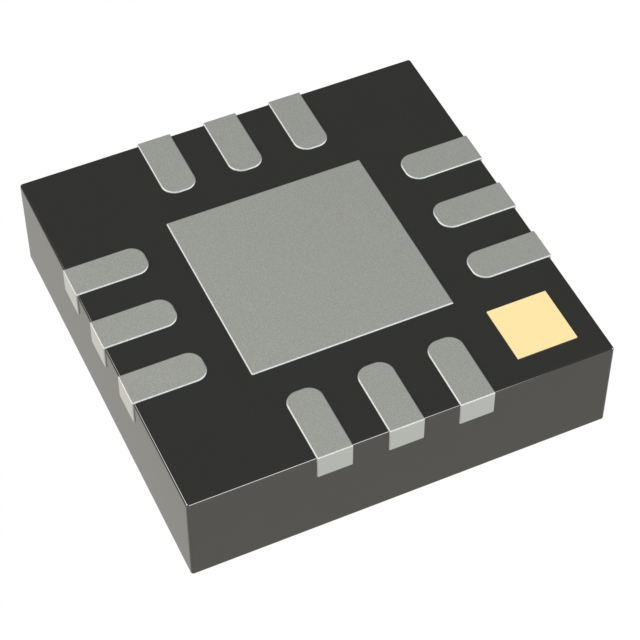

SKY13299-321LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 5GHZ 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
SKY13299-321LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 5GHZ 12QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13299-321LF |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 5 GHz |
| Frequency Range [Min] | 20 MHz |
| IIP3 | 57 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.75 dB |
| Isolation | 22 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-WFQFN Exposed Pad |
| RF Type | WiMax, WLAN |
| Supplier Device Package | 12-QFN (3x3) |
| Test Frequency | 5 GHz |
| Topology | Reflective |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.78 | |
| 10 | $ 2.49 | |||
| 25 | $ 2.36 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.94 | |||
| 500 | $ 1.74 | |||
| 1000 | $ 1.47 | |||
| Digi-Reel® | 1 | $ 2.78 | ||
| 10 | $ 2.49 | |||
| 25 | $ 2.36 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.94 | |||
| 500 | $ 1.74 | |||
| 1000 | $ 1.47 | |||
| Tape & Reel (TR) | 3000 | $ 1.39 | ||
| 6000 | $ 1.34 | |||
Description
General part information
SKY13299 Series
RF Switch IC WiMax, WLAN SPDT 5 GHz 50Ohm 12-QFN (3x3)
Documents
Technical documentation and resources
