Z8L18020PSG

Obsolete

Zilog

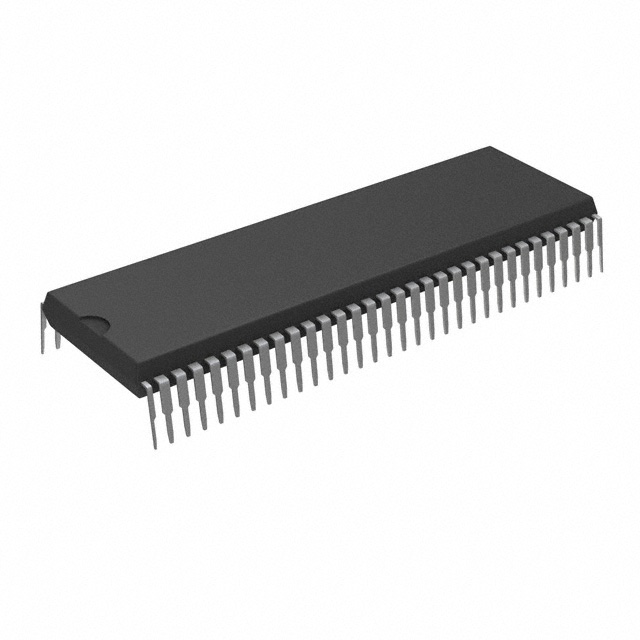

IC MPU Z180 20MHZ 64DIP

Search across all available documentation for this part.

Obsolete

Zilog

IC MPU Z180 20MHZ 64DIP

Technical Specifications

Parameters and characteristics for this part

Specification	Z8L18020PSG

Core Processor	Z8L180
Graphics Acceleration	False
Mounting Type	Through Hole
Number of Cores/Bus Width [custom]	8 Bit
Number of Cores/Bus Width [custom]	1 Core
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	0.75 in
Package / Case	64-DIP
Package / Case	19.05 mm
RAM Controllers	DRAM
Speed	20 MHz
Supplier Device Package	64-DIP
Voltage - I/O	3.3 V

Part	Graphics Acceleration	Mounting Type	Core Processor	Supplier Device Package	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Speed	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - I/O	RAM Controllers	Package / Case	Package / Case
Zilog Z8L18020FSG		Surface Mount	Z8L180	80-QFP	8 Bit	1 Core	20 MHz	80-BQFP	70 °C	0 °C	3.3 V	DRAM
Zilog Z8L18020PSG		Through Hole	Z8L180	64-DIP	8 Bit	1 Core	20 MHz	64-DIP	70 °C	0 °C	3.3 V	DRAM	0.75 in	19.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Z8L180 Microprocessor IC Z180 1 Core, 8-Bit 20MHz 64-DIP
