1532187-1

Active

TE Connectivity Aerospace, Defense and Marine

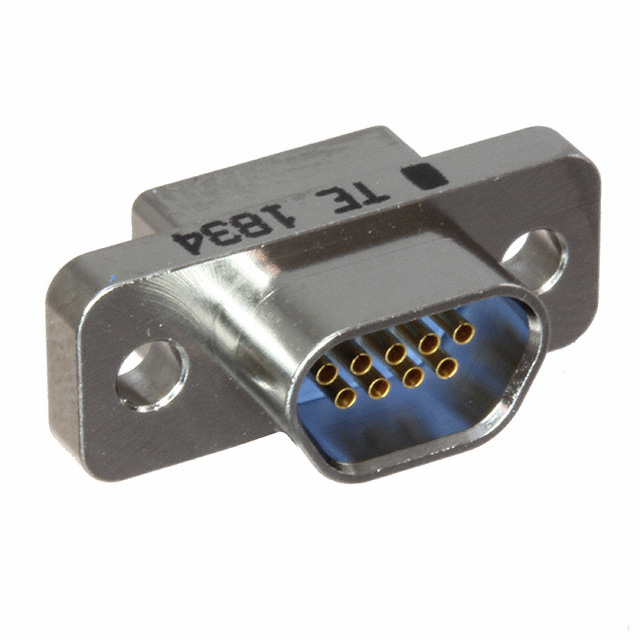

CONN MICRO-D RCPT 9POS SLDR CUP

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MICRO-D RCPT 9POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	1532187-1

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Features	Reverse Layout
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Electroless, Metal, Nickel Plated

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Contact Type	Number of Rows	Contact Finish	Shell Material, Finish	Connector Style	Mounting Type	Flange Feature	Connector Type
TE Connectivity Aerospace, Defense and Marine 1532187-1	50 µin	1.27 µm	9	Reverse Layout	Signal	2	Gold	Electroless Metal Nickel Plated	D-Type Micro-D	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
