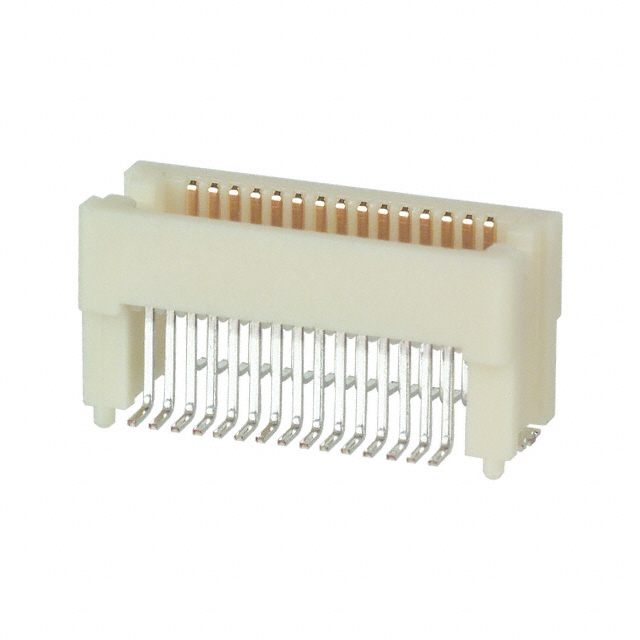

DF15(6.2)-30DP-0.65V(56)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15(6.2)-30DP-0.65V(56)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board [z]	6.2 mm
Height Above Board [z]	0.244 "
Mated Stacking Heights	7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Number of Positions
Hirose Electric USA, Inc. DF15(6.2)-30DP-0.65V(56)	7 mm 8 mm	0.026 in	0.65 mm	6.2 mm	0.244 "	Header Outer Shroud Contacts	Gold	Board Guide Solder Retention	4 Áin	0.1 Ám	Surface Mount	2	30
