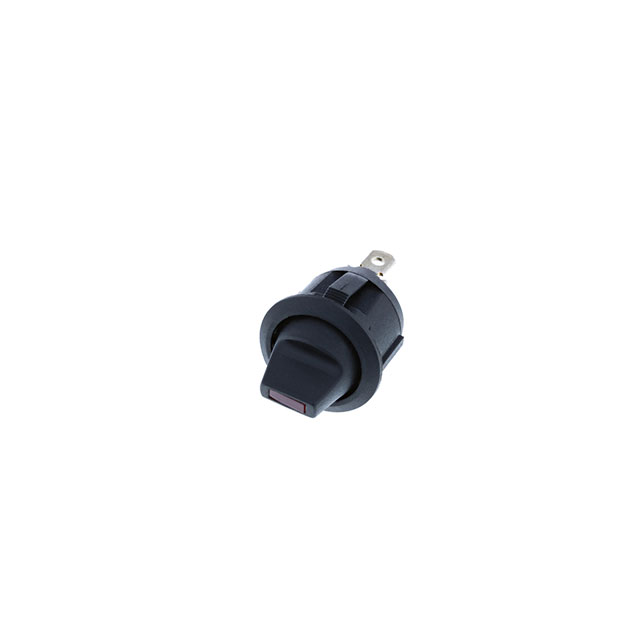

RA5-1A-DC-2-RL
ActiveSwitch Components
SWITCH ROCKER SPST 20A 14V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RA5-1A-DC-2-RL
ActiveSwitch Components
SWITCH ROCKER SPST 20A 14V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RA5-1A-DC-2-RL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Paddle - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 14 VDC |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - DC | 14 V |
