M3UUK-4006R

Active

3M (TC)

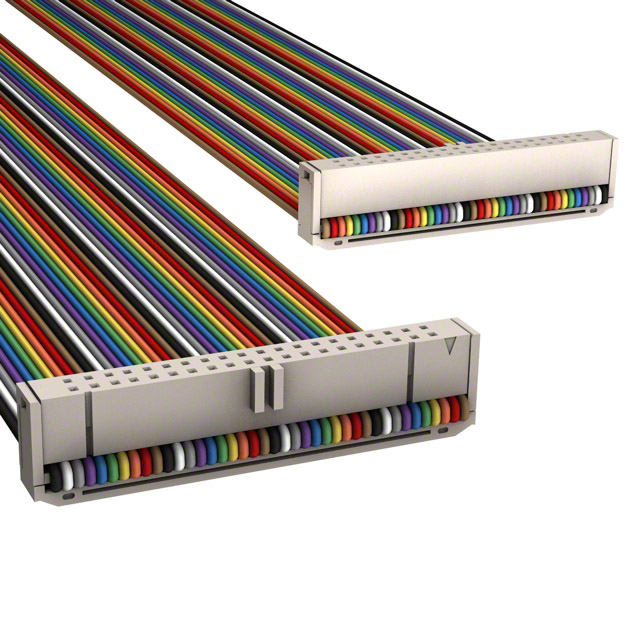

IDC CABLE - MKS40K/MC40M/MKS40K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M3UUK-4006R

Active

3M (TC)

IDC CABLE - MKS40K/MC40M/MKS40K

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3UUK-4006R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3UUK Series

Part	Pitch - Connector	Pitch - Connector	Number of Positions	Connector Type	Cable Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Shielding	Number of Rows	Features	Color	Length	Length	Length	Length	Number of Positions
3M (TC) M3UUK-2618J	0.1 in	2.54 mm	26	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin	457.2 mm	1.5 ft	0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief
3M (TC) M3UUK-2018R	0.1 in	2.54 mm	20	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin	457.2 mm	1.5 ft	0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3UUK-4006R	0.1 in	2.54 mm	40	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin			0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief	Multiple Ribbon	152.4 mm	6 "	0.5 '
3M (TC) M3UUK-1018R	0.1 in	2.54 mm	10	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin	457.2 mm	1.5 ft	0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3UUK-1020K	0.1 in	2.54 mm	10	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin			0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief	Multiple Twisted Pair (Flat)	508 mm			1.67 ft
3M (TC) M3UUK-4018J	0.1 in	2.54 mm	40	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin	457.2 mm	1.5 ft	0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief
3M (TC) M3UUK-5018R	0.1 in	2.54 mm	50	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin	457.2 mm	1.5 ft	0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3UUK-3436R	0.1 in	2.54 mm	34	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin	914.4 mm	3 ft	0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief	Multiple Ribbon
3M (TC) M3UUK-1636J	0.1 in	2.54 mm		Socket to Socket	IDC	Gold	0.76 Ám	30 Áin	914.4 mm	3 ft	0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief						16
3M (TC) M3UUK-2406R	0.1 in	2.54 mm	24	Socket to Socket	IDC	Gold	0.76 Ám	30 Áin			0.05 "	1.27 mm	Unshielded	2	Polarizing Key Strain Relief	Multiple Ribbon	152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.05
		10	$ 20.09
		25	$ 18.19
		50	$ 16.91
		100	$ 15.75
		250	$ 14.38
		500	$ 13.46

Description

General part information

M3UUK Series

40 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet
