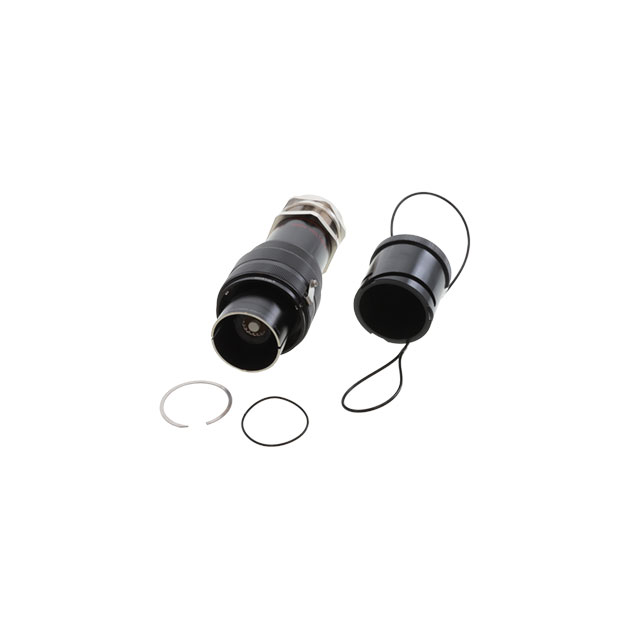

WLC06ENC40SN7AMM50M

Active

Amphenol Industrial Operations

WIND-LOK WALL STRAIGHT PLUG, FIN

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

WIND-LOK WALL STRAIGHT PLUG, FIN

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Fastening Type	Contact Finish - Mating	Voltage Rating	Shell Size - Insert	Termination	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Orientation	Primary Material	Shell Finish	Color	Connector Type	Features	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
Amphenol Industrial Operations WLC06EGN40SJ5BMM50M	Shielded	Reverse Bayonet Lock	Silver	1000 VDC	40	Crimp	1	125 °C	-40 °C	Environment Resistant	J	Metal	Black Anodized	Green	Female Sockets Plug	Backshell Dust Cap	Free Hanging (In-Line)	38 mm	1.496 in	32 mm	1.26 in
Amphenol Industrial Operations WLC06ENC40SN7AMM50M	Shielded	Reverse Bayonet Lock	Silver	1000 VDC	40	Crimp	1	125 °C	-40 °C	Environment Resistant	N	Metal	Black Anodized		Female Sockets Plug	Backshell Dust Cap	Free Hanging (In-Line)	38 mm	1.496 in	32 mm	1.26 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 338.62

General part information

1 (Power) Position Circular Connector Plug, Female Sockets Crimp
