10KEEG3EA

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	10KEEG3EA

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm
Panel Cutout Dimensions [y]	28.45 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Approval Agency	Connector Style	Filter Type	Mounting Type	Current Rating - Appliance Inlet	Current Rating - Filter	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Accomodates a Fuse	Connector Type
Delta Electronics 10KEEG3EA	CSA UL VDE	IEC 320-C14	Filtered (EMI RFI) - Commercial	Flange Panel Mount	10 A	10 A	Quick Connect	28.45 mm	28.45 mm	115 VAC	250 VAC		Male Blades Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	360	$ 5.20

General part information

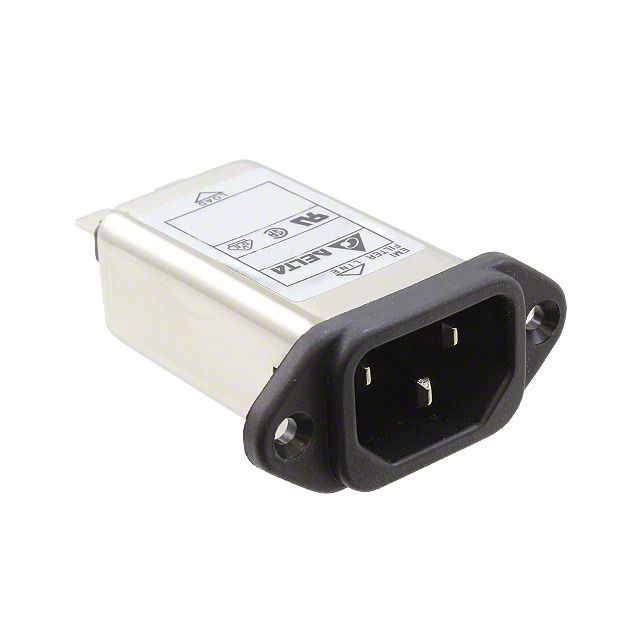

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange

Technical documentation and resources
