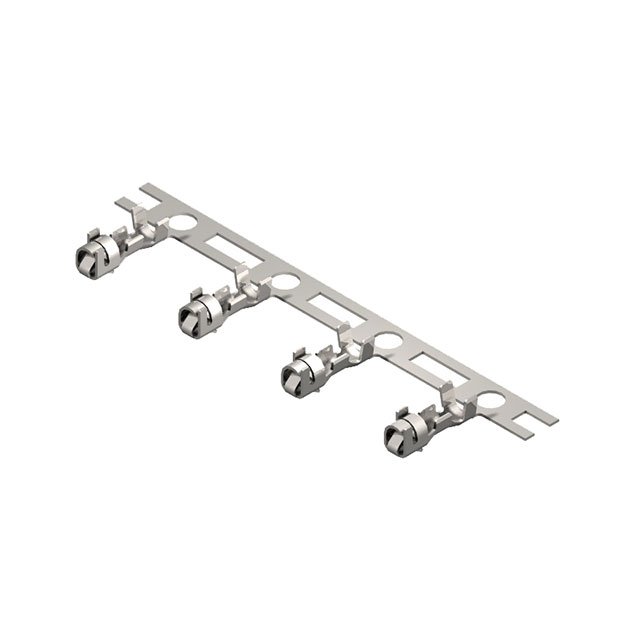

CI22T021PE0
ActiveCvilux USA
2.50MM(.098) WIRE TO BOARD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CI22T021PE0
ActiveCvilux USA
2.50MM(.098) WIRE TO BOARD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CI22T021PE0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 80 Áin |
| Contact Finish Thickness | 2.03 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.04 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| 2500 | $ 0.02 | |||
| Tape & Reel (TR) | 6000 | $ 0.02 | ||
| 12000 | $ 0.02 | |||
| 30000 | $ 0.01 | |||
| 60000 | $ 0.01 | |||
Description
General part information
CI22T021 Series
Socket Contact Tin 22-28 AWG Crimp Stamped
