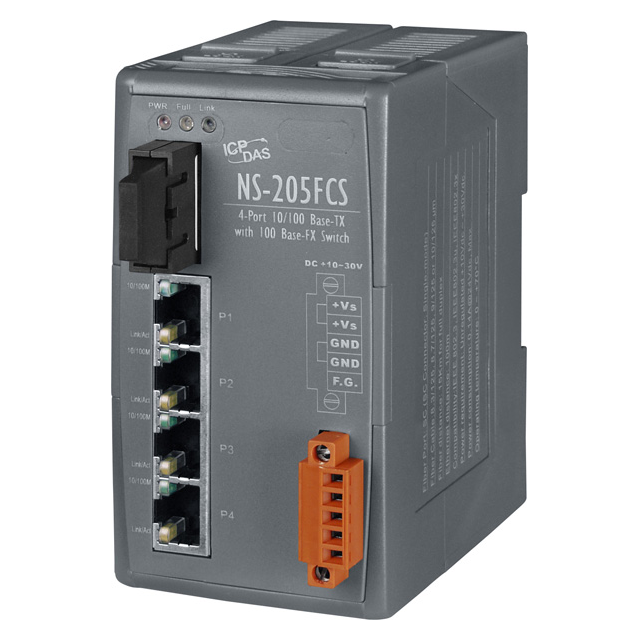

NS-205FCS

Active

ICP DAS USA INC

1 PORT FIBER OPTIC, 4 PORT 10/10

Search across all available documentation for this part.

Active

ICP DAS USA INC

1 PORT FIBER OPTIC, 4 PORT 10/10

Technical Specifications

Parameters and characteristics for this part

Part	Distance	Connector Type	Configuration	Fiber Type	Copper Ports	Type	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Copper Type	Fiber Ports	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	PoE Ports	Ingress Protection
ICP DAS USA INC NS-205FCS	2 km	RJ45 SC	Fixed	100BASE-FX (Singlemode)	4	Unmanaged	DIN Rail	30 V	10 V	10/100	1	70 °C	0 °C
ICP DAS USA INC NS-205PSE		RJ-45	Fixed		5	Switch - Unmanaged		55 V	46 V	10/100		75 ░C	-40 °C	4	4
ICP DAS USA INC NS-205AG		RJ45	Fixed		5	Switch - Unmanaged	DIN Rail	48 V	12 V	10 100 1000		75 ░C	-40 °C	5
ICP DAS USA INC NS-205PFC	2 km	RJ45 SC	Fixed	100BASE-FX (Multimode)	4	Unmanaged	DIN Rail	55 V	46 V	10/100	1	75 ░C	-30 ░C
ICP DAS USA INC NS-205IP67/DIN		RJ45	Fixed		5	Switch - Unmanaged	DIN Rail	30 V	10 V	10/100		60 °C	-10 °C	5		IP67
ICP DAS USA INC NS-205PSE-24		RJ45	Fixed		5	Switch - Unmanaged	DIN Rail	32 V	18 V	10/100		75 ░C	-40 °C	5
ICP DAS USA INC NS-205FC	2 km	RJ45 SC	Fixed	100BASE-FX (Multimode)	4	Unmanaged	DIN Rail	30 V	10 V	10/100	1	70 °C	0 °C
ICP DAS USA INC NS-205AFC-T	2 km	RJ45 SC	Fixed	100BASE-FX (Multimode)	4	Unmanaged	DIN Rail	48 V	12 V	10/100	1	75 ░C	-30 ░C
ICP DAS USA INC NS-205PSE-IP67		RJ45	Fixed		5	Switch - Unmanaged	Wall Mount	53 VDC	46 V	10/100		60 °C	-10 °C	5	4	IP67
ICP DAS USA INC NS-205PFT	2 km	RJ45 ST	Fixed	100BASE-FX (Multimode)	4	Unmanaged	DIN Rail	55 V	46 V	10/100	1	75 ░C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 679.00

General part information

1 PORT FIBER OPTIC, 4 PORT 10/10

Technical documentation and resources

No documents available
