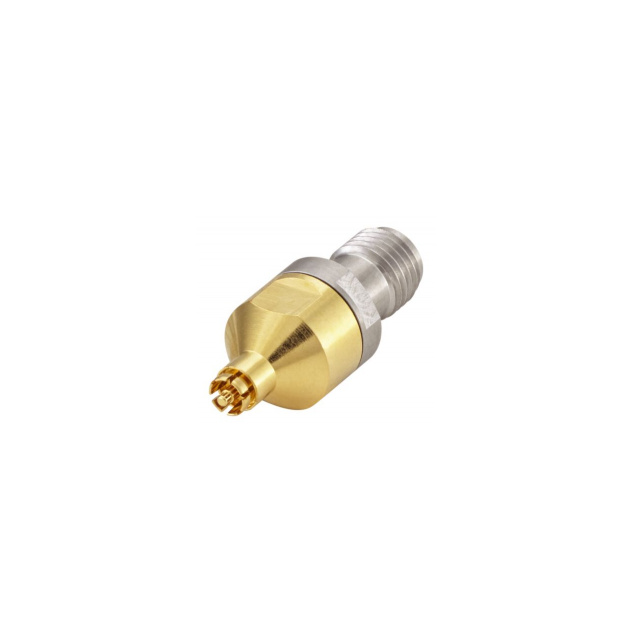

16S132-K00L5

Obsolete

Rosenberger

RF CONNECTOR ADAPTER,

Search across all available documentation for this part.

Obsolete

Rosenberger

RF CONNECTOR ADAPTER,

Technical Specifications

Parameters and characteristics for this part

Specification	16S132-K00L5

Adapter Series	SMA to FMC
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	FMC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Insertion Loss	0.32 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Center Contact Material	Convert From (Adapter End)	Dielectric Material	Style	Frequency - Max [Max]	Convert To (Adapter End)	Insertion Loss	Mounting Type	Adapter Type	Conversion Type	Impedance	Mating Cycles	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Body Material	Body Finish	Center Contact Plating
Rosenberger 16S132-K00L5	Beryllium Copper	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Straight	10 GHz	FMC Plug Male Pin	0.32 dB	Free Hanging (In-Line)	Plug to Jack	Between Series	50 Ohms	500	Snap-On	-40 °C	105 ░C	SMA to FMC	Beryllium Copper	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To FMC Plug, Male Pin 50 Ohms
