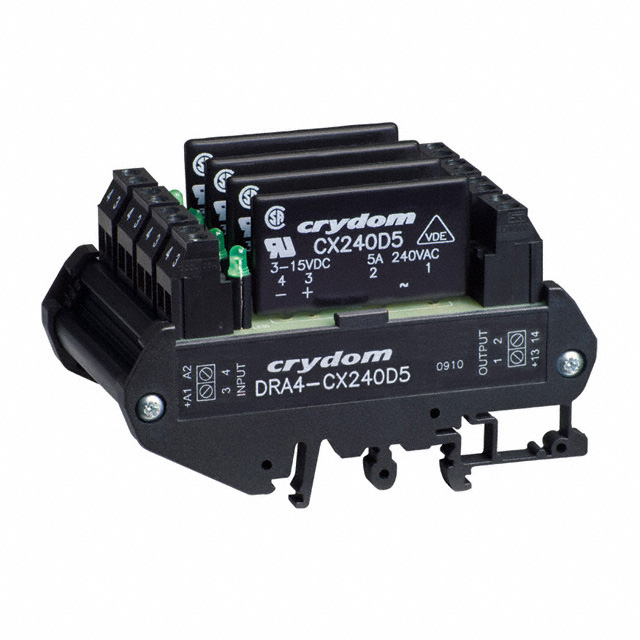

DRA4-CX240D5

Active

Sensata-Crydom

SSR RELAY SPST-NO 5A 12-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 5A 12-280V

Technical Specifications

Parameters and characteristics for this part

Part	Load Current	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Circuit	Output Type	Mounting Type	Termination Style	On-State Resistance (Max) [Max]
Sensata-Crydom DRA4-CMXE100D10	8 A	CE cURus	-20 C	80 C	20 VDC	28 V	Module	1 V	100 V	SPST-NO (1 Form A) x 4	DC	DIN Rail	Screw Terminal	10 mOhms
Sensata-Crydom DRA4-CMX100D10	8 A	CE cURus	-20 C	80 C	3 V	10 V	Module	1 V	100 V	SPST-NO (1 Form A) x 4	DC	DIN Rail	Screw Terminal	10 mOhms
Sensata-Crydom DRA4-CMXE200D3	3 A	CE cURus	-20 C	80 C	20 VDC	28 V	Module	1 V	200 V	SPST-NO (1 Form A) x 4	DC	DIN Rail	Screw Terminal	200 mOhms
Sensata-Crydom DRA4-CMX200D3	3 A	CE cURus	-20 C	80 C	3 V	10 V	Module	1 V	200 V	SPST-NO (1 Form A) x 4	DC	DIN Rail	Screw Terminal	200 mOhms
Sensata-Crydom DRA4-CX240D5	5 A	CE cURus	-20 C	80 C	3 V	15 V	Module	12 V	280 V	SPST-NO (1 Form A) x 4	AC Zero Cross	DIN Rail	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) x 4 Module
