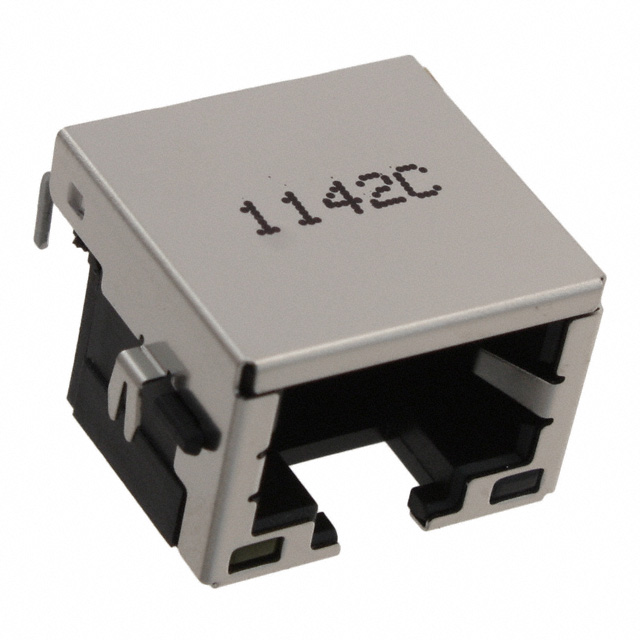

SMJ401-S88W-DS-01YG

Obsolete

Sullins Connector Solutions

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SMJ401-S88W-DS-01YG

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Housing Material	Nylon 6T, Polyamide (PA6T), Glass Filled
LED Color	Yellow - Green
Mounting Type	Through Hole, Board Edge
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Contact Finish	Contact Finish Thickness	Shielding	Tab Direction	Orientation	Number of Ports	Number of Rows	Connector Type	Housing Material	Contact Material	Mounting Type	LED Color	Number of Positions/Contacts	Termination
Sullins Connector Solutions SMJ401-S88W-DS-01YG	Gold	Flash	Shielded	Down	90 °	1	1	Jack	Glass Filled Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Board Edge Through Hole	Yellow - Green	8p8c (RJ45 Ethernet)	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
