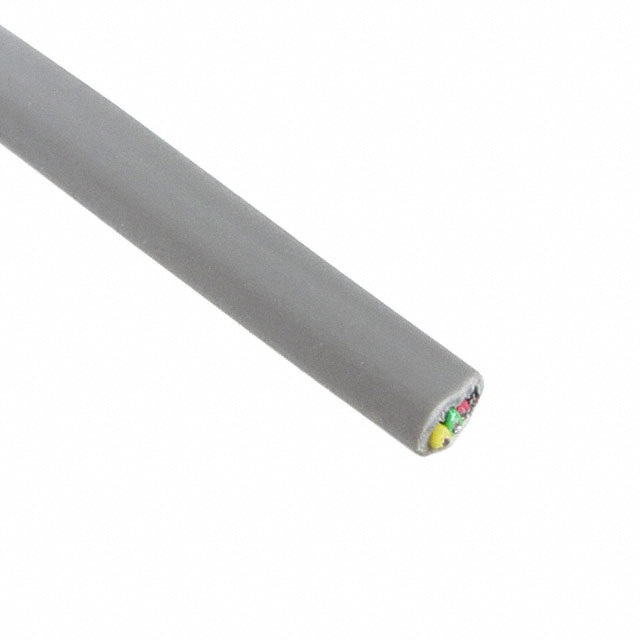

1604 SL021

Active

ALPHA WIRE

CABLE 4COND 26AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 26AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1604 SL021

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Diameter [diameter]	4.83 mm
Jacket (Insulation) Diameter [diameter]	0.19 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	26 AWG

Part	Number of Conductors	Conductor Strand	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Jacket Color	Voltage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
ALPHA WIRE 1604 SL030	4	7 Strands 34 AWG	Polypropylene (PP)	26 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	60 °C	100 m	328.1 ft	Slate	150 V	Multi-Conductor	4.83 mm	0.19 in	Communication Control	0.02 in	0.508 mm
ALPHA WIRE 1604 SL021	4	7 Strands 34 AWG	Polypropylene (PP)	26 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	60 °C	304.8 m	1000 ft	Slate	150 V	Multi-Conductor	4.83 mm	0.19 in	Communication Control	0.02 in	0.508 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 741.28

General part information

4 Conductor Multi-Conductor Cable Slate 26 AWG 1000.0' (304.8m)
