10142048-10
ObsoleteTE Connectivity Measurement Specialties

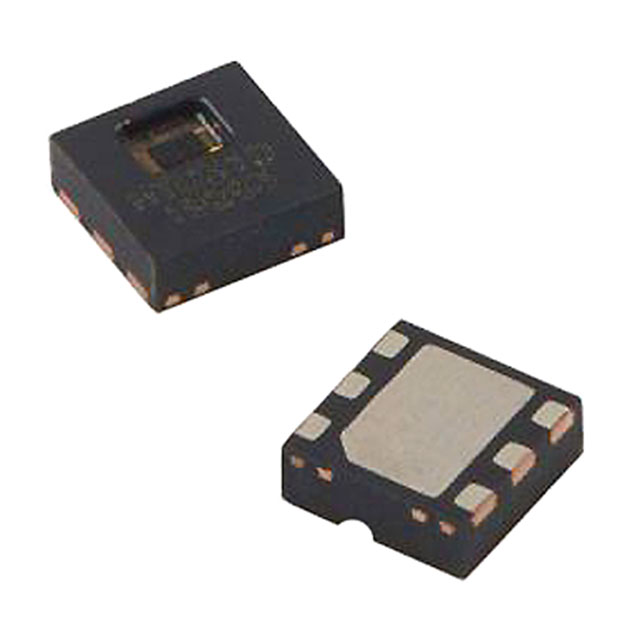

HTU31V I.C 31V RH/T ANALOG R400
Deep-Dive with AI
Search across all available documentation for this part.
10142048-10
ObsoleteTE Connectivity Measurement Specialties
HTU31V I.C 31V RH/T ANALOG R400
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10142048-10 |
|---|---|
| Accuracy | 2 % |
| Humidity Range [Max] | 100 % RH |
| Humidity Range [Min] | 0 % RH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | 6-VDFN Exposed Pad |
| Response Time | 5 s |
| Sensor Type | Temperature, Humidity |
| Supplier Device Package | 6-DFN (2.5x2.5) |
| Supplier Device Package [x] | 2.5 |
| Supplier Device Package [y] | 2.5 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1014 Series
Humidity, Temperature 0 ~ 100% RH Analog Voltage ±2% RH 5 s Surface Mount
