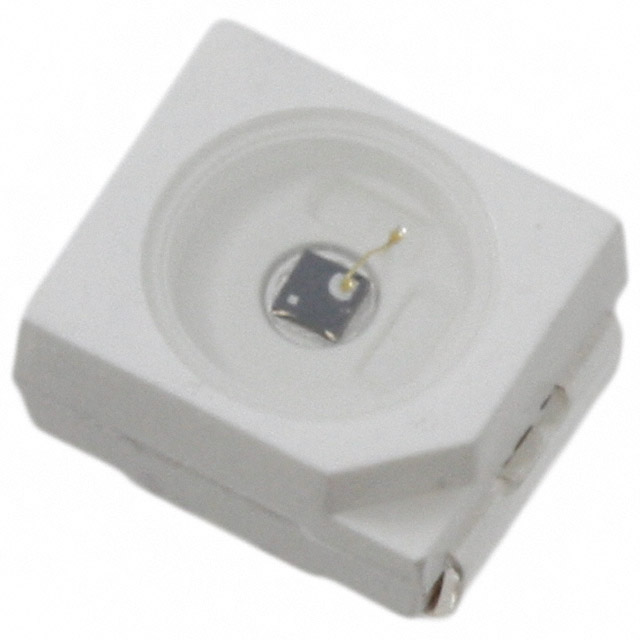

PT67-21C/L41/TR8

Active

Everlight Electronics Co Ltd

PHOTO TRANSISTOR, 940NM, 0.02A I(C), ROHS COMPLIANT PACKAGE-2

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

PHOTO TRANSISTOR, 940NM, 0.02A I(C), ROHS COMPLIANT PACKAGE-2

Technical Specifications

Parameters and characteristics for this part

Specification	PT67-21C/L41/TR8

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	2-PLCC
Power - Max [Max]	75 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Wavelength	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Dark (Id) (Max) [Max]
Everlight Electronics Co Ltd PT67-21C/L41/TR8	Top View	30 V	75 mW	20 mA	940 nm	Surface Mount	2-PLCC	-25 °C	85 °C	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Top View 2-PLCC
