VO2223B-X001

Active

Vishay General Semiconductor - Diodes Division

1A, 600V, PHOTOTRIAC, THROUGHHOL

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

1A, 600V, PHOTOTRIAC, THROUGHHOL

Technical Specifications

Parameters and characteristics for this part

Specification	VO2223B-X001

Approval Agency	UR, cUR, VDE
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	25 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7.62 mm
Package / Case	0.3 in, 7 Leads

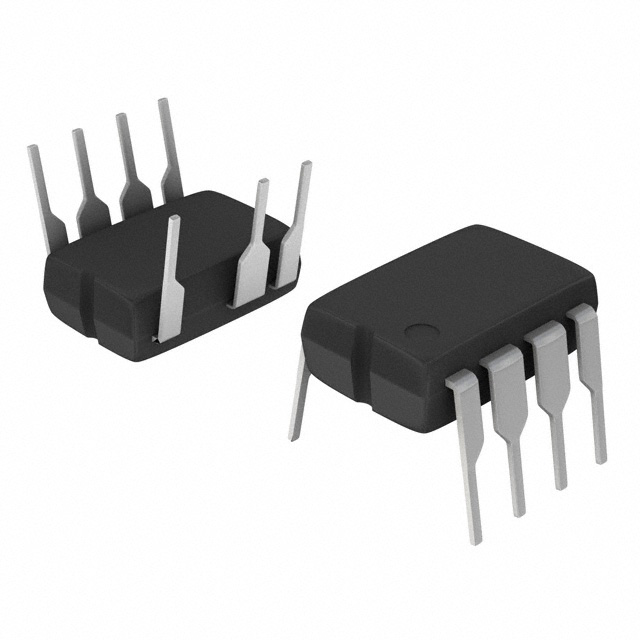

Package / Case	8-DIP
Static dV/dt (Min) [Min]	600 V/µs
Supplier Device Package	8-DIP
Voltage - Forward (Vf) (Typ) [Max]	1.4 V
Voltage - Isolation	4470 Vrms
Voltage - Off State	600 V
Zero Crossing Circuit	False

Part	Voltage - Isolation	Voltage - Off State	Static dV/dt (Min) [Min]	Current - LED Trigger (Ift) (Max) [Max]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ) [Max]	Zero Crossing Circuit	Current - DC Forward (If) (Max)	Number of Channels	Supplier Device Package	Current - Hold (Ih)
Vishay General Semiconductor - Diodes Division VO2223B-X001	4470 Vrms	600 V	600 V/µs	10 mA	cUR UR VDE	85 °C	-40 °C	7.62 mm	0.3 in 7 Leads	8-DIP	Through Hole	1.4 V		50 mA	1	8-DIP	25 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac, Power Output 4470Vrms 1 Channel 8-DIP
