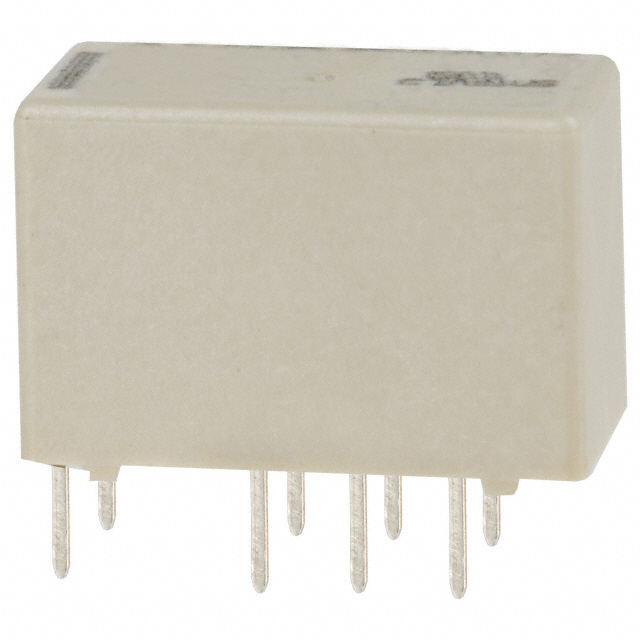

V23079A2016B301
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 4V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V23079A2016B301
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE DPDT 2A 4V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V23079A2016B301 |
|---|---|
| Coil Current | 35 mA |
| Coil Resistance | 114 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 4 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2000 | $ 2.22 | |
Description
General part information
1393790 Series
General Purpose Relay DPDT (2 Form C) Through Hole
