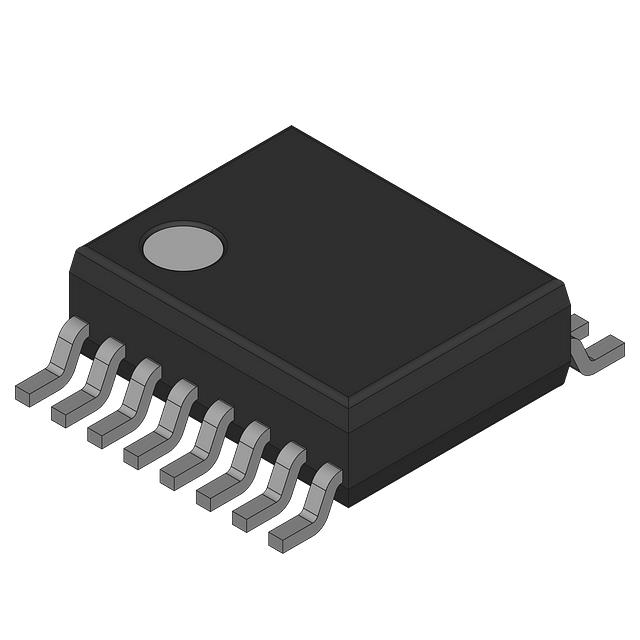

LMH6739MQ

Active

National Semiconductor

VIDEO AMPLIFIER, 1 CHANNEL(S), 3

Search across all available documentation for this part.

Active

National Semiconductor

VIDEO AMPLIFIER, 1 CHANNEL(S), 3

Technical Specifications

Parameters and characteristics for this part

Specification	LMH6739MQ

-3db Bandwidth	750 MHz
Applications	Buffer
Current - Output / Channel [custom]	90 mA
Current - Supply	32 mA
Mounting Type	Surface Mount
Number of Circuits	3
Package / Case	0.154 in
Package / Case	16-SSOP
Package / Case	3.9 mm
Slew Rate	3300 V/µs
Supplier Device Package	16-SSOP
Voltage - Supply, Single/Dual (±) [Max]	12 V, 6 V
Voltage - Supply, Single/Dual (±) [Min]	4 V, -4 V, 8 V

Part	Number of Circuits	Current - Output / Channel [custom]	Supplier Device Package	-3db Bandwidth	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Applications	Current - Supply	Package / Case	Package / Case	Package / Case	Slew Rate	Mounting Type
National Semiconductor LMH6739MQ	3	90 mA	16-SSOP	750 MHz	6 V 12 V	-4 V 4 V 8 V	Buffer	32 mA	0.154 in	16-SSOP	3.9 mm	3300 V/µs	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 3.15

General part information

Video Amp 3 Buffer 16-SSOP
