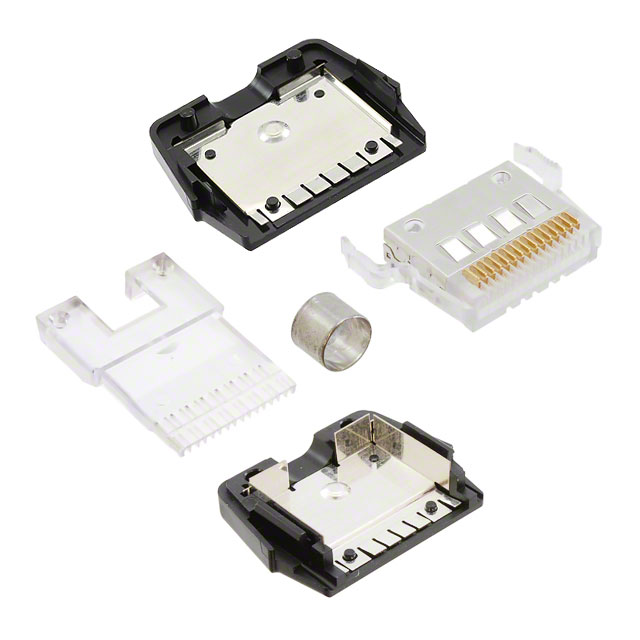

SS-311515-26

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 15P15C SHIELDED

Search across all available documentation for this part.

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 15P15C SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-311515-26

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Compu-Shield, Keyed
Housing Material	Polycarbonate (PC)
Number of Positions/Contacts [custom]	15
Number of Positions/Contacts [custom]	15
Shielding	Shielded
Termination	IDC
Voltage Rating	150 VDC

Part	Connector Type	Color	Current Rating (Amps)	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination	Voltage Rating	Features	Cable Type	Contact Finish	Housing Material	Contact Material
BEL MAGNETIC SOLUTIONS SS-311515-1	Plug	Blue	1.5 A	Shielded	15	15	50 µin	1.27 µm	IDC	150 VDC	Compu-Shield Keyed	Round Cable Solid Stranded Wires	Gold	Polycarbonate (PC)	Copper Alloy
BEL MAGNETIC SOLUTIONS SS-311515-26	Plug	Translucent - Clear	1.5 A	Shielded	15	15	50 µin	1.27 µm	IDC	150 VDC	Compu-Shield Keyed	Round Cable Solid Stranded Wires	Gold	Polycarbonate (PC)	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 15p15c Position Shielded IDC
