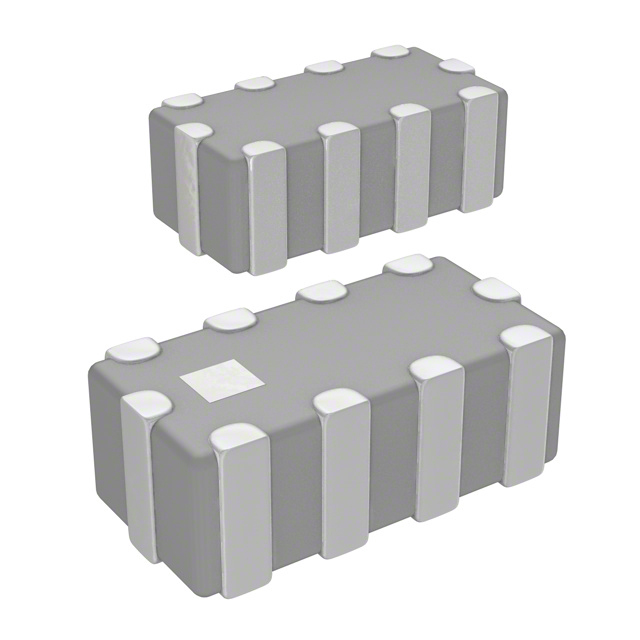

NFA18SL187V1A45L

Active

Murata Power Solutions Inc.

FILTER LC 180MHZ SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NFA18SL187V1A45L

Active

Murata Power Solutions Inc.

FILTER LC 180MHZ SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NFA18SL187V1A45L

Applications	General Purpose
Attenuation Value	20 dB
Center / Cutoff Frequency	180 MHz
Current	50 mA
ESD Protection	False
Filter Order	2nd
Height [z]	0.026 in
Height [z]	0.65 mm
Mounting Type	Surface Mount
Number of Channels	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10 Leads
Package / Case	Array, 0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.032 in
Size / Dimension [y]	0.8 mm
Technology	LC
Type	Low Pass
Voltage - Rated	10 V

NFA18SL Series

Part	Type	Technology	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Package / Case	Package / Case	Mounting Type	Height [z]	Height [z]	Filter Order	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current	Applications
Murata Power Solutions Inc. NFA18SL357V1A45L	Low Pass	LC	10 V	85 °C	-40 °C	4	350 MHz	15 dB	10 Leads	0603 (1608 Metric) Array	Surface Mount	0.026 in	0.65 mm	2nd	1.6 mm	0.032 in	0.063 in	0.8 mm	35 mA	General Purpose
Murata Power Solutions Inc. NFA18SL207V1A45L	Low Pass	LC	10 V	85 °C	-40 °C	4	200 MHz	15 dB	10 Leads	0603 (1608 Metric) Array	Surface Mount	0.026 in	0.65 mm	2nd	1.6 mm	0.032 in	0.063 in	0.8 mm	50 mA	General Purpose
Murata Power Solutions Inc. NFA18SL227V1A45L	Low Pass	LC	10 V	85 °C	-40 °C	4	220 MHz	30 dB	10 Leads	0603 (1608 Metric) Array	Surface Mount	0.026 in	0.65 mm	2nd	1.6 mm	0.032 in	0.063 in	0.8 mm	25 mA	General Purpose
Murata Power Solutions Inc. NFA18SL307V1A45L	Low Pass	LC	10 V	125 °C	-55 °C	4	300 MHz	20 dB	10 Leads	0603 (1608 Metric) Array	Surface Mount	0.026 in	0.65 mm	2nd	1.6 mm	0.032 in	0.063 in	0.8 mm	100 mA	General Purpose
Murata Power Solutions Inc. NFA18SL137V1A45L	Low Pass	LC	10 V	85 °C	-40 °C	4	130 MHz	25 dB	10 Leads	0603 (1608 Metric) Array	Surface Mount	0.026 in	0.65 mm	2nd	1.6 mm	0.032 in	0.063 in	0.8 mm	50 mA	General Purpose
Murata Power Solutions Inc. NFA18SL187V1A45L	Low Pass	LC	10 V	85 °C	-40 °C	4	180 MHz	20 dB	10 Leads	0603 (1608 Metric) Array	Surface Mount	0.026 in	0.65 mm	2nd	1.6 mm	0.032 in	0.063 in	0.8 mm	50 mA	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.23

Description

General part information

NFA18SL Series

LC EMI Filter 2nd Order Low Pass 4 Channel 50 mA 0603 (1608 Metric), Array, 10 PC Pad
