111I,AL

Active

Serpac

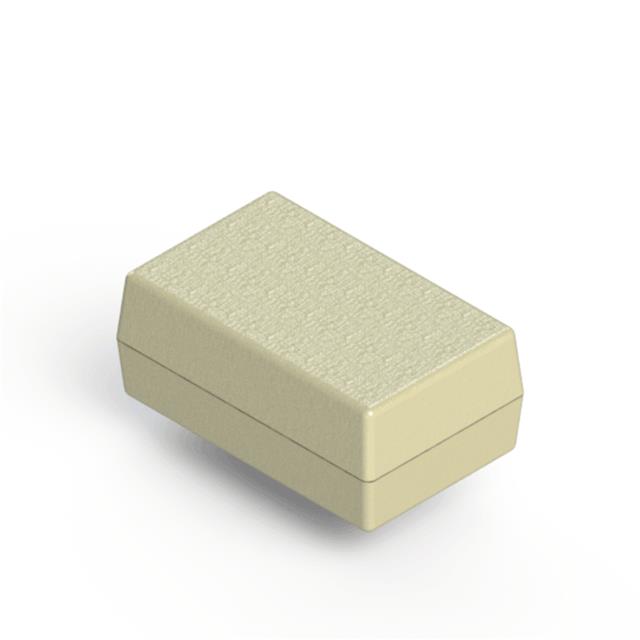

BOX ABS ALMOND 3.6"L X 2.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 3.6"L X 2.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	111I,AL

Area (L x W)	52.3 cm²
Area (L x W)	8.1 in²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	62.14 g
Weight	0.137 lb

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Ratings	Material Flammability Rating	Height [z]	Height [z]	Container Type	Thickness	Thickness	Color	Weight	Weight	Area (L x W)	Area (L x W)	Features	Design	Area (L x W) [custom]	Area (L x W) [custom]
Serpac 111I,BK	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS	IP40 NEMA 1	UL94 HB	38.1 mm	1.5 in	Box	2.54 mm	0.1 in	Black	62.14 g	0.137 lb	52.3 cm²	8.1 in²	PCB Supports	Hand Held Split Sides
Serpac 111I,GY	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS	IP40 NEMA 1	UL94 HB	38.1 mm	1.5 in	Box	2.54 mm	0.1 in	Gray	62.14 g	0.137 lb			PCB Supports	Hand Held Split Sides	52.3 cm˛	8.1 in˛
Serpac 111I,AL	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS	IP40 NEMA 1	UL94 HB	38.1 mm	1.5 in	Box	2.54 mm	0.1 in	Almond	62.14 g	0.137 lb	52.3 cm²	8.1 in²	PCB Supports	Hand Held Split Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.76

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 3.600" L x 2.250" W (91.44mm x 57.15mm) X 1.500" (38.10mm)

Technical documentation and resources

No documents available
