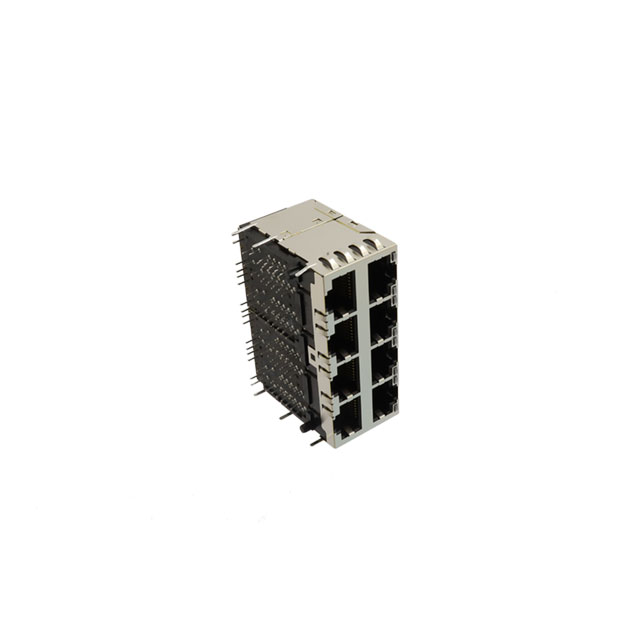

MTJG-8-88JX1-V-FSG-PG-L16-M310C

Active

Adam Tech

GANGED 8 POSITION MODULAR JACK,

Search across all available documentation for this part.

Active

Adam Tech

GANGED 8 POSITION MODULAR JACK,

Technical Specifications

Parameters and characteristics for this part

Specification	MTJG-8-88JX1-V-FSG-PG-L16-M310C

Connector Type	RJ45 with USB A, Dual
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Features	Solder Retention, Board Guide
Height Above Board	31 mm
Height Above Board	1.22 in
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	9
Number of Ports	8
Number of Rows	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Stainless Steel
Shielding	Shielded, EMI Finger
Tab Direction	Up and Down
Termination	Solder

Part	Contact Material	Contact Finish	Contact Finish Thickness	Height Above Board	Height Above Board	Features	Number of Cores per Jack	LED Color	Tab Direction	Housing Material	Shield Material	Shielding	Termination	Number of Ports	Orientation	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows
Adam Tech MTJG-8-88JX1-V-FSG-PG-L16-M310C	Phosphor Bronze	Gold	Flash	31 mm	1.22 in	Board Guide Solder Retention	9	Green Yellow	Up and Down	Thermoplastic	Stainless Steel	Shielded EMI Finger	Solder	8	90 °	Through Hole	Dual RJ45 with USB A	70 °C	0 °C	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1008	$ 20.29
