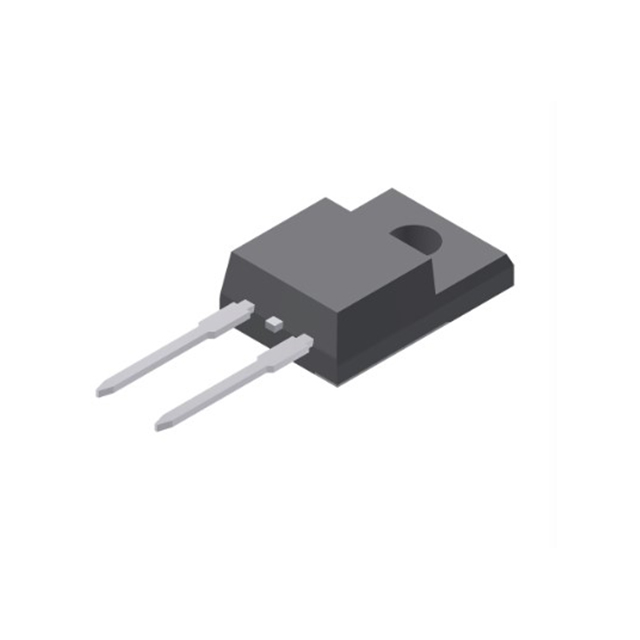

DHG5I600PM

Active

IXYS

DIODE GEN PURP 600V 5A TO220ACFP

Search across all available documentation for this part.

Active

IXYS

DIODE GEN PURP 600V 5A TO220ACFP

Technical Specifications

Parameters and characteristics for this part

Specification	DHG5I600PM

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-2 Full Pack, Isolated Tab
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220ACFP
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.2 V

Part	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Reverse Recovery Time (trr)	Supplier Device Package	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case
IXYS DHG5I600PA	2.2 V	5 A	10 µA	200 mA 500 ns	150 °C	-55 °C	Standard	35 ns	TO-220AC	Through Hole	600 V	TO-220-2
IXYS DHG5I600PM	2.2 V	5 A	10 µA	200 mA 500 ns	150 °C	-55 °C	Standard	35 ns	TO-220ACFP	Through Hole	600 V	TO-220-2 Full Pack Isolated Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 5A Through Hole TO-220ACFP
