KMD3CMB8BBBRG2

Active

ZF Electronics

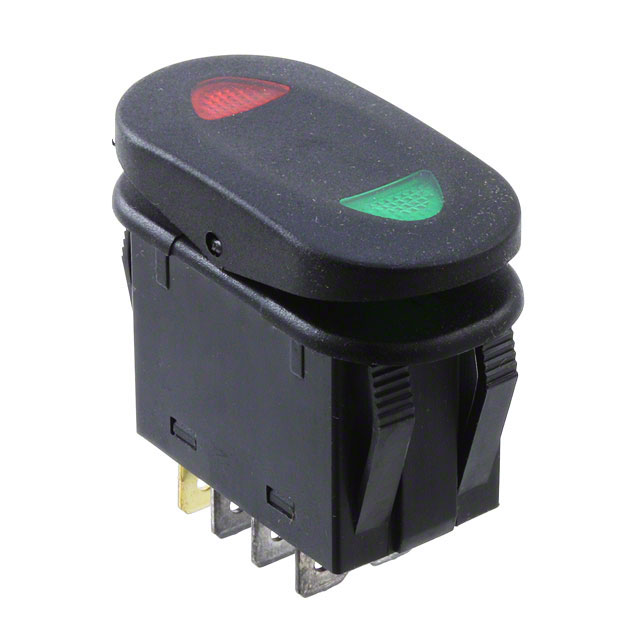

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KMD3CMB8BBBRG2

Actuator Marking	No Marking
Actuator Type	Flat - Illuminated
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	14 VDC
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Actuator Type	Mounting Type	Mechanical Life	Switch Function	Ingress Protection	Color - Actuator/Cap	Illumination Type, Color	Actuator Marking	Termination Style	Circuit	Voltage Rating - AC	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)
ZF Electronics KMD3CMB8BBBRG2	Flat - Illuminated	Panel Mount Snap-In	100000 Cycles	On-Off-On	IP56 - Dust Protected Water Resistant	Black	Green/Red LED	No Marking	Quick Connect - 0.250" (6.3mm)	DPDT	125 V	6000 Cycles	85 °C	-20 C	14 VDC	21.2 mm	36.6 mm	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 20A (AC) 125 V Panel Mount, Snap-In
