78M6612-DB/OMU-RF

Obsolete

Analog Devices Inc./Maxim Integrated

KIT DEMO OUTLET MEAS OMU1-S-RF

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

KIT DEMO OUTLET MEAS OMU1-S-RF

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Type	Utilized IC / Part	Function	Measurement Error	Input Impedance [Max]	Input Impedance [Min]	Meter Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - I/O High	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Voltage - I/O Low	Supplier Device Package
Analog Devices Inc./Maxim Integrated 78M6612-SOCKET64	Board(s)	Power Management	78M6612	Energy/Power Meter
Analog Devices Inc./Maxim Integrated 78M6612-DB/OMU-USB	Board(s) Cable(s)	Power Management	78M6612	Energy/Power Meter
Analog Devices Inc./Maxim Integrated 78M6612-IMR/F					0.5 %	90 kOhm	40 kOhm	Single Phase	85 °C	-40 °C	68-VFQFN Exposed Pad	2 V	3 V	3.6 V	Surface Mount	0.8 V	68-SQFN (8x8)
Analog Devices Inc./Maxim Integrated 78M6612-IM/F					0.5 %	90 kOhm	40 kOhm	Single Phase	85 °C	-40 °C	68-VFQFN Exposed Pad	2 V	3 V	3.6 V	Surface Mount	0.8 V	68-SQFN (8x8)
Analog Devices Inc./Maxim Integrated 78M6612-SOCKET68	Board(s)	Power Management	78M6612	Energy/Power Meter
Analog Devices Inc./Maxim Integrated 78M6612-GT/F/P2					0.5 %	90 kOhm	40 kOhm	Single Phase	85 °C	-40 °C	64-LQFP	2 V	3 V	3.6 V	Surface Mount	0.8 V	64-LQFP (10x10)
Analog Devices Inc./Maxim Integrated 78M6612-IGT/F					0.5 %	90 kOhm	40 kOhm	Single Phase	85 °C	-40 °C	64-LQFP	2 V	3 V	3.6 V	Surface Mount	0.8 V	64-LQFP (10x10)
Analog Devices Inc./Maxim Integrated 78M6612-DB/OMU-RF	Board(s) Cable(s)	Power Management	78M6612	Energy/Power Meter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

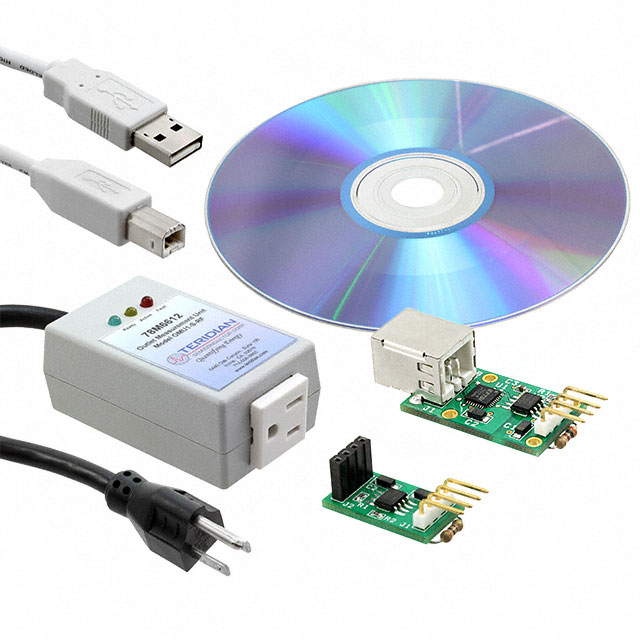

78M6612 Energy/Power Meter Power Management Evaluation Board
