MPQ7235GQBE-AEC1-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
36V, 3A, SYNCHRONOUS BUCK AUTOMO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ7235GQBE-AEC1-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
36V, 3A, SYNCHRONOUS BUCK AUTOMO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ7235GQBE-AEC1-P |
|---|---|
| Current - Output / Channel | 1.5 A |
| Dimming | PWM |
| Frequency | 2.2 MHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

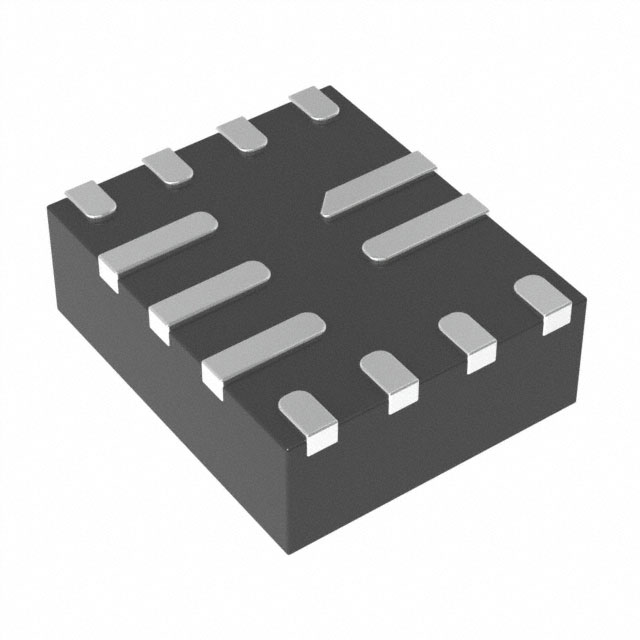

| Package / Case | 13-PowerVQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 13-QFN (2.5x3) |
| Topology | Step-Down (Buck) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 36 V |
| Voltage - Supply (Min) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.39 | |
| 10 | $ 3.94 | |||
| 25 | $ 3.73 | |||
| 100 | $ 3.23 | |||
| 250 | $ 3.06 | |||
| Digi-Reel® | 1 | $ 5.70 | ||
| 10 | $ 3.83 | |||
| 25 | $ 3.34 | |||
| 100 | $ 2.80 | |||
| 250 | $ 2.53 | |||
| Tape & Reel (TR) | 500 | $ 2.05 | ||
Description
General part information
MPQ7235 Series
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) PWM Dimming 1.5A 13-QFN (2.5x3)
